Woods FZ23B


Woods FZ23B lawn tractor photo
2007 - 2013
FZ Series
Front-mount mower
Series map:
FZ22K
FZ23B
FZ25D
22.0hp
23.0hp
25.0hp
Production
ManufacturerWoods
Front-mount mower
Woods FZ23B Engine
23HP Vanguard 627cc 2-cyl gasoline
Fuel tank11 gal
41.6 L
Engine details ...
Mechanical
Two-wheel drive
Power steering
Two-post folding ROPS.
Photos
No photos of the Woods FZ23B are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Dimensions & Tires
Wheelbase51 inches
129 cm
Front tire23x10.5-12
Full dimensions and tires ...
Woods FZ23B attachments
54" front-mount mower deck
61" front-mount mower deck
Attachment details ...
Electrical
Groundnegative
Battery volts12
References

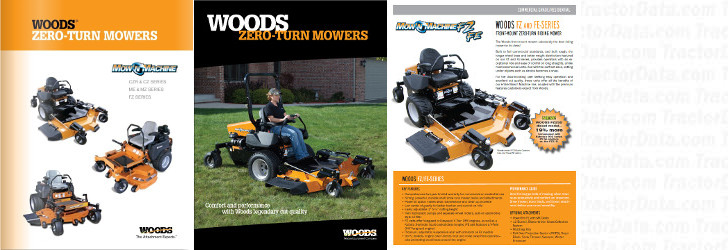

FZ23B references literature
Mow'n Machine Zero-Turn Mowers published in 2010, by Woods
Zero-Turn Mowers published in 2012, by Woods
Mow'n Machine FZ and FE Series published in 2007, by Woods
