Woods 5160

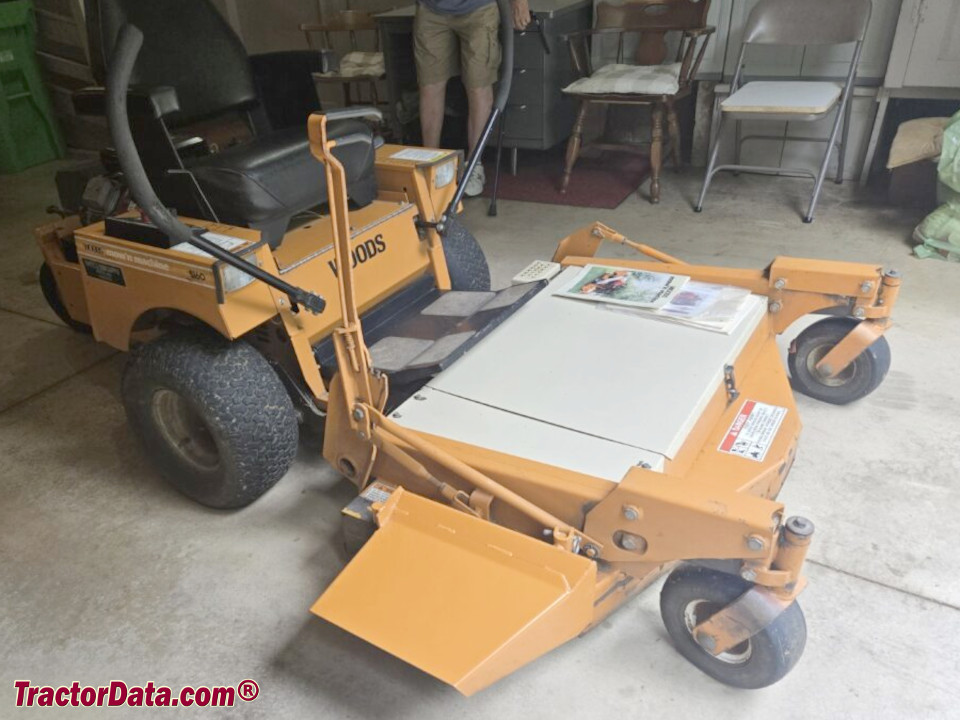

Woods 5160 lawn tractor photo
1993 - 1994
5000 Series
Front-mount mower
Grasshopper built
Series map:
5120
5160
5180
12.5hp
16.0hp
18.0hp
Production
DistributorWoods
ManufacturerGrasshopper
Front-mount mower
Woods 5160 Engine
16HP Vanguard 480cc 2-cyl gasoline
Fuel tank3 gal
11.4 L
Engine details ...
Mechanical
Two-wheel drive
Power steering
Open operator station.
Photos
No photos of the Woods 5160 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Power Take-off (PTO)
Front PTOindependent
Clutchelectric
Dimensions & Tires
Weight560 lbs
254 kg
Front tire18x8.50-8
Rear tire13x5.00-6
Full dimensions and tires ...
Woods 5160 attachments
44" front-mount mower deck
48" front-mount mower deck
snowblower
blade
Attachment details ...
Electrical
Groundnegative
Charging amps16
Battery CCA250
Battery volts12
References
5160 references literature
Mow'n Machines and Accessories published in 1994, by Woods
