Simplicity Broadmoor 18H Engine


Simplicity Broadmoor 18H lawn tractor photo
1997 - 2004
Model year
Broadmoor Series
Lawn tractor
Series map:
Broadmoor 16VH
Broadmoor 18H
16.0hp
18.0hp
Engine Detail
Vanguard
gasoline
2-cylinder
air-cooled vertical-shaft V-Twin
Displacement622 cc
38 ci
Bore/Stroke3.03x2.64 inches
77 x 67 mm
Power (gross)18 hp
13.4 kW
Starterelectric
Starter volts12
Oil capacity2 qts
1.9 L
Simplicity Broadmoor 18H Engine

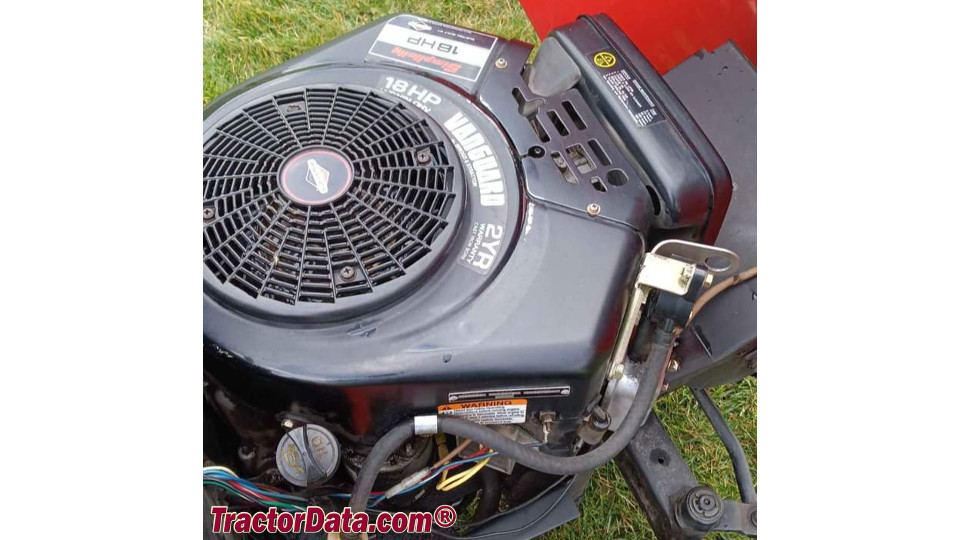

Simplicity Broadmoor 18H engine image
Image courtesy of Hunter Stewart
