Simplicity Broadmoor 16H Engine


Simplicity Broadmoor 16H lawn tractor photo
1994 - 2004
Model year
Broadmoor Series
Lawn tractor
Series map:
Broadmoor 14H
Broadmoor 16H
Broadmoor 16VH
14.0hp
16.0hp
16.0hp
Engine Detail
Kohler CV16S
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement426 cc
26 ci
Bore/Stroke3.55x2.64 inches
90 x 67 mm
Power (gross)16 hp
11.9 kW
Starterelectric
Starter volts12
Oil capacity2 qts
1.9 L

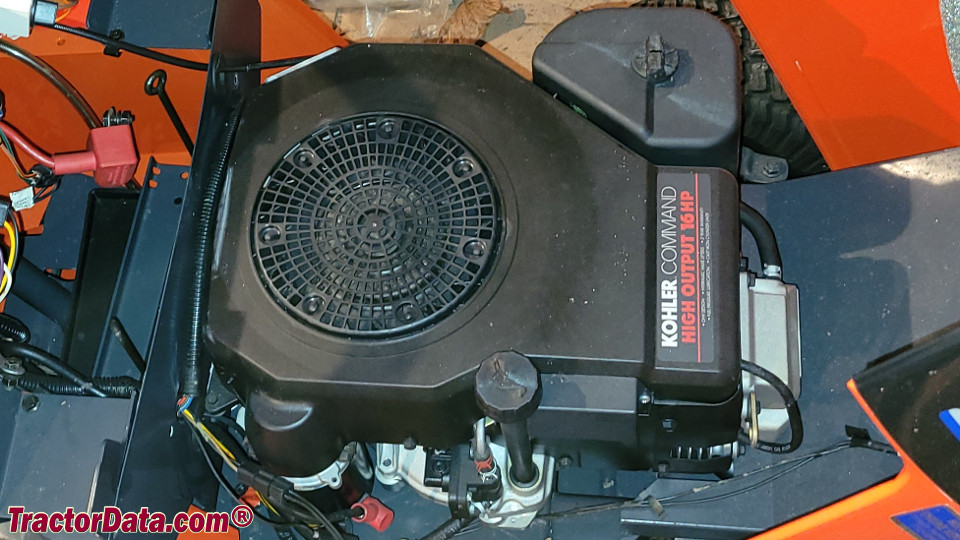

Simplicity Broadmoor 16H Engine
Simplicity Broadmoor 16H engine image
Image courtesy of Dan Turner
