MTD 780
|
|
| Production | |
| Manufacturer | MTD |
| Lawn tractor | |
| MTD 780 Engine | |
| 16HP Briggs & Stratton 655cc 2-cyl gasoline | |
| Fuel tank | 1.9 gal 7.2 L |
 Engine details ... | |
| MTD 780 Transmission | |
| hydrostatic | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Disc brakes | |
| Open operator station. |
| Photos | |
| No photos of the MTD 780 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. | |
| Power Take-off (PTO) | |
| Mid PTO | independent |
| Clutch | manual idler pulley |
| Dimensions & Tires | |
| Weight | 760 lbs 344 kg |
| Front tire | 15x6.00 |
| Rear tire | 22x7.50 |
 Full dimensions and tires ... | |
| MTD 780 attachments | |
| 44" mid-mount mower deck | |
| snowblower | |
| blade | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
| References | |
 | |

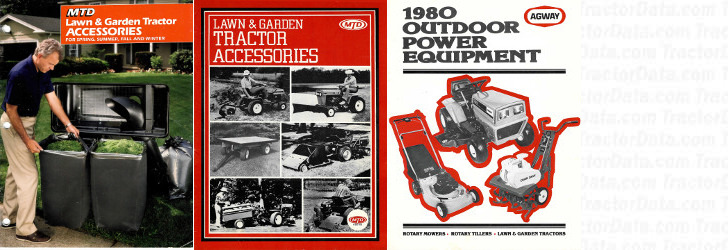

| Lawn & Garden Tractor Accessories published in 1980, by MTD | |
| Lawn & Garden Tractor Accessories published in 1984, by MTD | |
| Outdoor Power Equipment published in 1980, by Agway | |
 | |

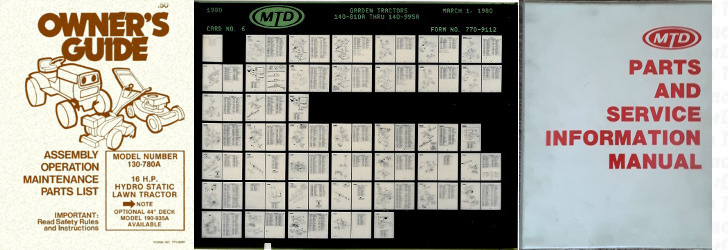

| Owner's Guide 130-780A (770-8960) published in 1980* | |
| MTD Parts Microfiche (770-0273) published in 1980 | |
| Parts and Service Information Manual (770-1737) published in 1982 | |
| *Publication contains known errors. |
