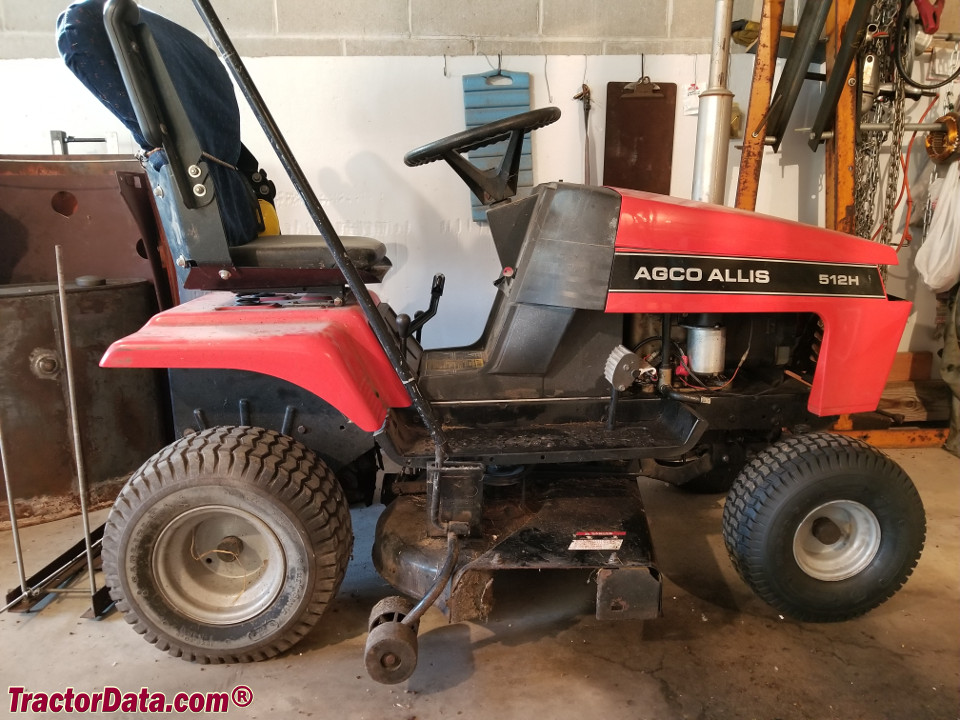

AGCO 512H
|
|
Note: the AGCO model 512H is the same as the Simplicity Regent 12.5H. The following data is from the Regent 12.5H listing. |
| Production | |
| Distributor | AGCO |
| Manufacturer | Simplicity |
| Lawn tractor | |
| Original price was $2,500 in 1993 | |
| Variants | |
| Regent 12.5H | similar Simplicity model |
| 2512H | similar Massey Ferguson model |
| AGCO 512H Engine | |
| 12.5HP Briggs & Stratton 465cc 1-cyl gasoline | |
| Fuel tank | 2.2 gal 8.3 L |
 Engine details ... | |
| AGCO 512H Transmission | |
| hydrostatic | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Open operator station. |
| Photos | |
 | |
 AGCO 512H photos... | |
| Power Take-off (PTO) | |
| Mid PTO | independent |
| Clutch | manual |
| Dimensions & Tires | |
| Wheelbase | 45.5 inches 115 cm |
| Weight | 436 lbs 197 kg |
| Front tire | 15x6.00x6 |
| Rear tire | 18x6.60x6 |
 Full dimensions and tires ... | |
| AGCO 512H attachments | |
| 36" mid-mount mower deck | |
| snowblower | |
| blade | |
 Attachment details ... |
| 512H Serial Numbers | |
| Location: | Serial number decal on the right side of the tractor frame, above the front axle. |
| Electrical | |
| Charging amps | 3 |
| Battery volts | 12 |
| Battery AH | 39 |
| References | |
 | |
| Operator's Manual 512 Series (1709709) published in 1993 | |
| Lawn & Garden Tractors published in 1993, by AGCO Allis | |
| Lawn & Garden Tractors published in 1994, by AGCO Allis | |
| 1994 Price List published in 1993, by Simplicity |
