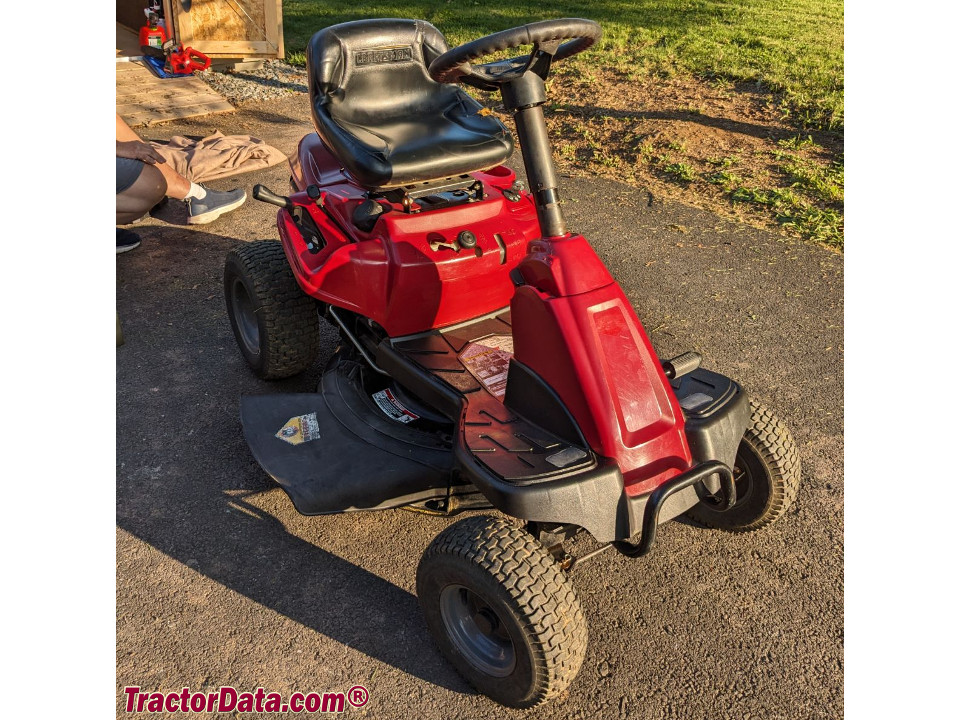

Craftsman 247.25000
|
|
| Production | |
| Distributor | Craftsman (a part of Sears) |
| Manufacturer | MTD |
| Riding lawn mower | |
| Craftsman 247.25000 Engine | |
| 11.7HP Zongshen 419cc 1-cyl gasoline | |
| Fuel tank | 1.3 gal 4.9 L |
 Engine details ... | |
| Craftsman 247.25000 Transmission | |
| 6-speed mechanical CVT | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Open operator station. |
| Power Take-off (PTO) | |
| Mid PTO | independent |
| Clutch | manual |
| Dimensions & Tires | |
| Rear tire | 16x6.5 |
 Full dimensions and tires ... | |
| Craftsman 247.25000 attachments | |
| 30" mid-mount mower deck | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
| References | |
 | |
| 2012 Customer Buying Guide published by Sears |
