Lawn Tractors > Simplicity > Yeoman 648

Simplicity Yeoman 648

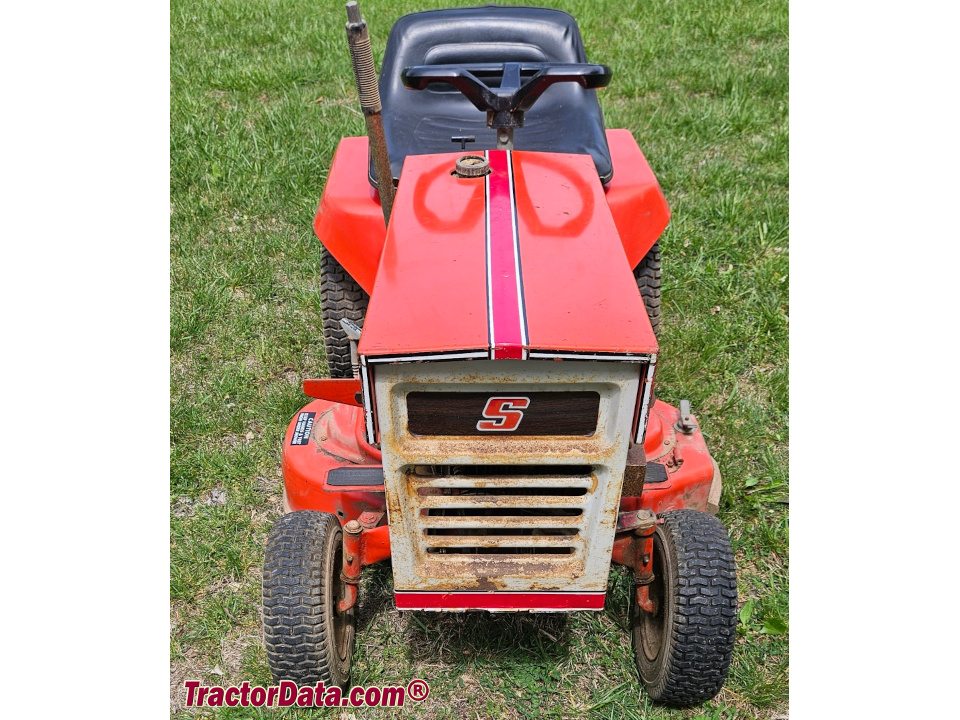

Simplicity Yeoman 648 lawn tractor photo
1973
Yeoman Series
Garden tractor
Series map:
Yeoman 648
8.0hp
Production
ManufacturerSimplicity (a part of Allis Chalmers)
Garden tractor
Simplicity Yeoman 648 Engine
8HP Briggs & Stratton 318cc 1-cyl gasoline
Engine details ...
Simplicity Yeoman 648 Transmission
3-speed gear
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Photos
No photos of the Simplicity Yeoman 648 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Power Take-off (PTO)
Mid PTOindependent
Clutchmanual
Dimensions & Tires
Wheelbase36.5 inches
92 cm
Weight288 lbs
130 kg
Front tire4.10/3.50x6
Rear tire16-7.50x8
Full dimensions and tires ...
Simplicity Yeoman 648 attachments
32" mid-mount mower deck
snowblower
blade
Attachment details ...
Electrical
Groundnegative
Battery volts12
References
Yeoman 648 references literature
Lawn Tractors published in 1973, by Simplicity
Operator's Manual Yeoman 648 published in 1973
