Lawn Tractors > John Deere > X384

John Deere X384



John Deere X384 tractor photo
2016 - 2027
Model year
X300 Series
Lawn tractor
Series map:
X380
X384
X390
23.0hp
23.0hp
23.0hp
Production
ManufacturerJohn Deere
Lawn tractor
Built in Horicon, Wisconsin, USA
Original price was $5,399 in 2021
John Deere X384 Engine
23HP Kawasaki 726cc 2-cyl gasoline
Fuel tank3.3 gal
12.5 L
Engine details ...
John Deere X384 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Manual four-wheel steering
Wet disc brakes
Open operator station.
Photos
No photos of the John Deere X384 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Power Take-off (PTO)
Mid PTOindependent
Clutchelectric
Dimensions & Tires
Wheelbase49.4 inches
125 cm
Weight557 lbs
252 kg
Front tire15x6.00-6
Rear tire20x10.00-10
Full dimensions and tires ...
John Deere X384 attachments
48" mid-mount mower deck
snowblower
blade
Attachment details ...
X384 Serial Numbers
Location:Serial number decal on the right side of the tractor frame, above the front axle.
2021110001
2022130001

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemflywheel alternator
Charging amps12
Battery CCA340
Battery volts12
References

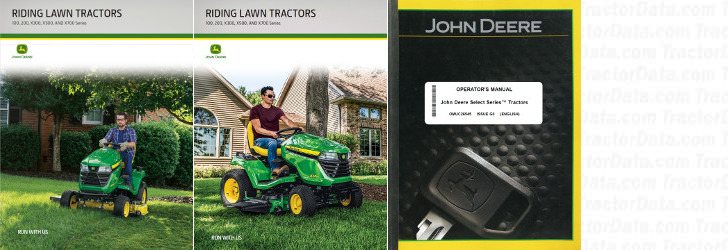

X384 references literature
Riding Lawn Tractors published in 2021, by John Deere
Riding Lawn Tractors published in 2022, by John Deere*
Riding Lawn Tractors published in 2023, by John Deere*
Operator's Manual X300 Tractors (OMUC26545) published in 2020
*Publication contains known errors.
