Lawn Tractors > John Deere > X107

John Deere X107



John Deere X107 lawn tractor photo
2021 -
X100 Series
Lawn tractor
Series map:
X107
X127
11.1kw
12.6kw
Production
ManufacturerJohn Deere
Lawn tractor
Built in Greeneville, Tennessee, USA
John Deere X107 Engine
11.1KW Briggs & Stratton 499cc 1-cyl gasoline
Fuel tank2.4 gal
9.1 L
Engine details ...
John Deere X107 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Photos
No photos of the John Deere X107 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Power Take-off (PTO)
Mid PTOindependent
Clutchmanual
Dimensions & Tires
Weight425 lbs
192 kg
Front tire15x6-6
Rear tire20x8-8
Full dimensions and tires ...
John Deere X107 attachments
106 cm mid-mount mower deck
snowblower
blade
Attachment details ...
Electrical
Groundnegative
Charging amps9
Battery volts12
Battery GroupU1
References

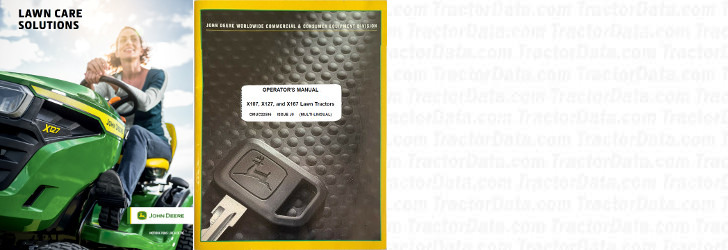

X107 references literature
Lawn Care Solutions published in 2020, by John Deere
Operator's Manual X107, X127 and X167 (OMUC22596) published in 2020
