Bolens H16XT 1659


Bolens H16XT 1659 lawn tractor photo
1981 - 1983
Medium Frame Series
Garden tractor
Production
ManufacturerBolens
Garden tractor
Built in Port Washington, Wisconsin, USA
Variants
G16XTgear
H16XThydrostatic
Bolens H16XT Engine
16HP Briggs & Stratton 655cc 2-cyl gasoline
Fuel tank3.5 gal
13.2 L
Engine details ...
Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.
Photos
No photos of the Bolens H16XT are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Tractor hitch
Typesleeve hitch OptOptional
Power Take-off (PTO)
Mid PTOindependent
Clutchelectric
Dimensions & Tires
Wheelbase49 inches
124 cm
Weight780 lbs
353 kg
Front tire16x6.50-8
Rear tire23x10.50-12
Full dimensions and tires ...
Bolens H16XT attachments
42" mid-mount mower deck
48" mid-mount mower deck
snowblower
blade
Attachment details ...
Electrical
Groundnegative
Battery volts12
Battery AH53
References

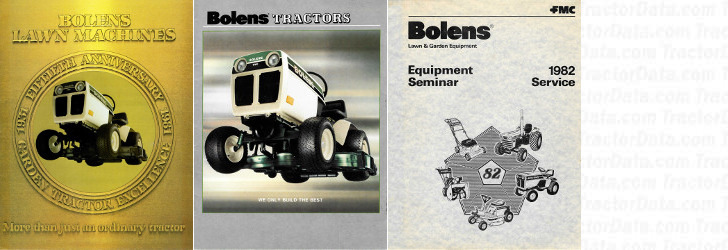

H16XT 1659 references literature
Lawn Machines published in 1981, by Bolens
Bolens Tractors published in 1982
Equipment Seminar published in 1982
