John Deere Z710A


John Deere Z710A lawn tractor photo
2010 - 2012
Z700 Series
Zero-turn mower
Series map:
Z710A
Z720A
23.0hp
25.0hp
Production
ManufacturerJohn Deere
Zero-turn mower
Built in Fuquay-Varina, North Carolina, USA
John Deere Z710A Engine
23HP Kohler 673cc 2-cyl gasoline
Fuel tank7 gal
26.5 L
Engine details ...
Mechanical
Two-wheel drive
Power steering
Two-post folding ROPS.
Photos
No photos of the John Deere Z710A are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Power Take-off (PTO)
Mid PTOindependent
Clutchelectro-magnetic
Dimensions & Tires
Weight1092 to 1107 pounds
Front tire13x5-6
Rear tire22x9.5-12
Full dimensions and tires ...
John Deere Z710A attachments
48" mid-mount mower deck
54" mid-mount mower deck
Attachment details ...
Electrical
Groundnegative
Battery volts12
References

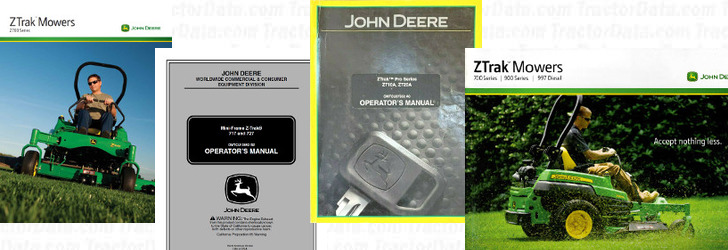

Z710A references literature
ZTrak Mowers Z700 Series published in 2010, by John Deere
Operator's Manual Mini-Frame Z-Trak 717 and 727 (OMTCU15693) published in 2002
Operator's Manual ZTrak Z710A and Z720A (OMTCU27952) published in 2010
ZTrak Mowers published in 2011, by John Deere
