Lawn Tractors > John Deere > 1580

John Deere 1580

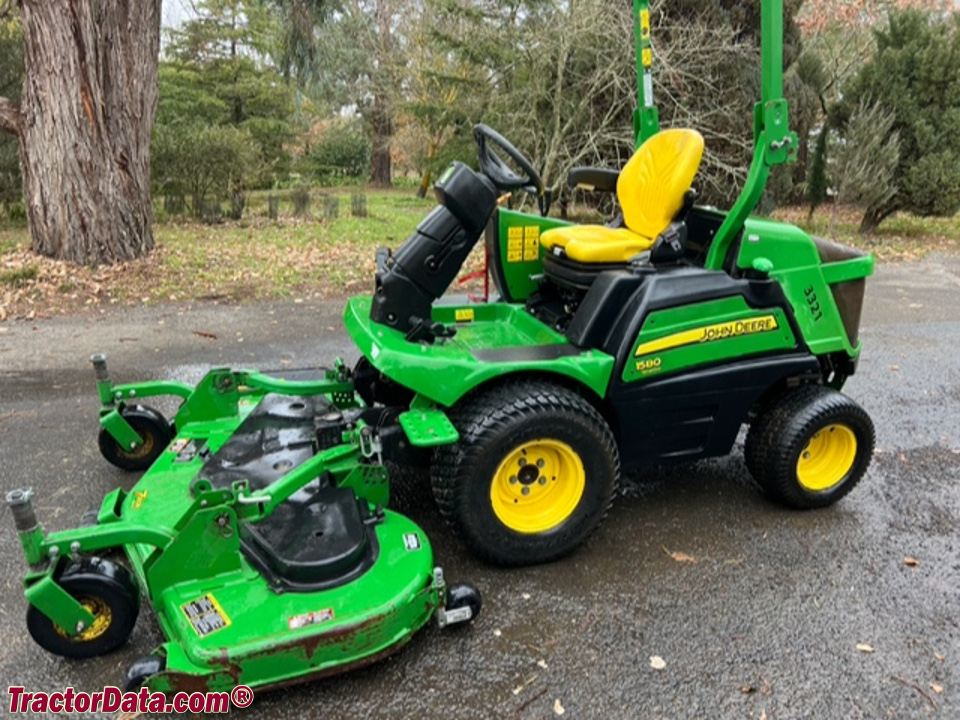

John Deere 1580 lawn tractor photo
2015 -
1500 Series
Front-mount mower
Series map:
1575
1580
1585
37.4hp
37.4hp
37.4hp
Production
ManufacturerJohn Deere
Front-mount mower
Built in Fuquay-Varina, North Carolina, USA
Original price was $34,489 in 2021
Variants
1580ROPS
1585Cab
John Deere 1580 Engine
37.4HP Yanmar 1642cc 3-cyl diesel
Fuel tank16 gal
60.6 L
Engine details ...
John Deere 1580 Transmission
hydrostatic
Transmission details ...
Mechanical
Drive4x4 MRWD 4WD
Differential lockmechanical front
Power steering
Wet disc brakes
Two-post folding ROPS.
Photos
No photos of the John Deere 1580 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeopen center
Pump flow6.3 gpm
23.8 lpm
Power Take-off (PTO)
Front PTOindependent
Clutchwet disc
Front RPM2000
Dimensions & Tires
Wheelbase48.2 inches
122 cm
Weight2120 lbs
961 kg
Front tire26x12-12
Rear tire20x10.00-10
Full dimensions and tires ...
John Deere 1580 attachments
60" front-mount mower deck
72" front-mount mower deck
62" front-mount mower deck
snowblower
blade
Attachment details ...
Electrical
Groundnegative
Charging systemalternator
Charging amps95
Battery CCA480
Battery volts12
References
1580 references literature
Front Mowers / Wide-Area Mowers published in 2018, by John Deere
