John Deere 1435

John Deere 1435 lawn tractor photo
2001 - 2004
1400 Series
Front-mount mower
1435 Series II
ManufacturerJohn Deere
TypeFront-mount mower
FactoryFuquay-Varina, North Carolina, USA
Original price$15,099 (2003 2WD )
Original price$17,519 (2003 4WD )
John Deere 1435 Engine
23.7HP Yanmar 1006cc 3-cyl diesel
Fuel tank14.5 gal
54.9 L
Engine details ...
Chassis4x2 2WD
 4x4 MRWD 4WD
Differential lockmechanical front
CabTwo-post folding ROPS.
No photos of the John Deere 1435 are currently available. To submit yours, email it to Photos may only be used with the permission of the original photographer.
Typeopen center
Pump flow5.1 gpm
19.3 lpm
Power Take-off (PTO)
Front PTOindependent
Front RPM2100
Dimensions & Tires
Wheelbase49.2 inches
124 cm
Front tire23x10.50-12
Rear tire18x8.50-8
Full dimensions and tires ...
John Deere 1435 attachments
60" front-mount mower deck
72" front-mount mower deck
62" front-mount mower deck
Attachment details ...
Charging systemalternator
Charging amps55
Battery volts12

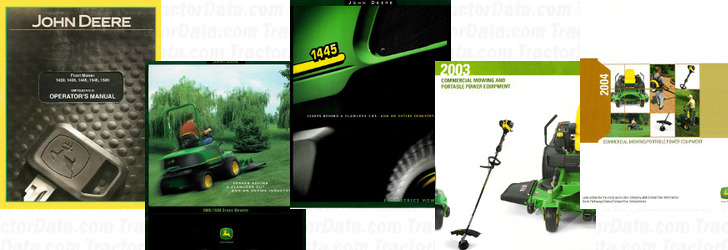

1435 reference literature
Operator's Manual Front Mower 1420, 1435, 1445, 1545, 1565 (OMTCU21473) published in 2002, by John Deere
1400/1500 Series Mowers published in 2002, by John Deere
1400 Series Mowers published in 2000, by John Deere
Commercial Mowing and Portable Power Equipment published in 2003, by John Deere
Commercial Mowing and Portable Power Equipment published in 2004, by John Deere
