John Deere F925 Engine


John Deere F925 lawn tractor photo
1993 - 2000
F900 Series
Front-mount mower
Series map:
F911
F925
F932
22.0hp
22.0hp
28.0hp
Engine Detail
Yanmar 3TG72UJF
diesel
3-cylinder
liquid-cooled horizontal-shaft inline
Displacement878 cc
53.6 ci
Bore/Stroke2.84x2.84 inches
72 x 72 mm
Power22 hp
16.4 kW
Air cleanerdry
Pre-heatingglow plugs
Compression22.7:1
Rated RPM3400
Idle RPM1450-3625
Starterelectric
Starter volts12
Oil capacity3.5 qts
3.3 L
Coolant capacity5 qts
4.7 L

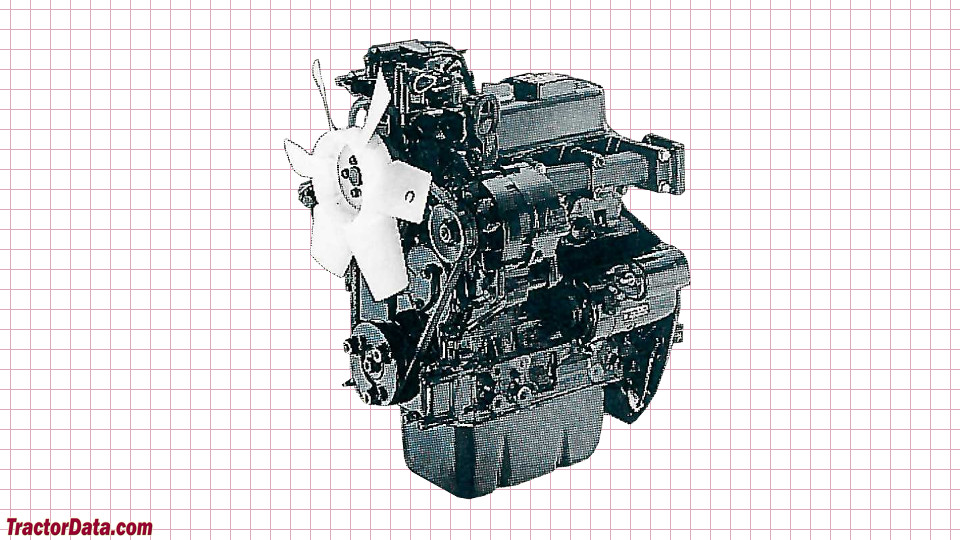

John Deere F925 Engine
John Deere F925 engine image
