Lawn Tractors > Cub Cadet > LGTX 1054

Cub Cadet LGTX 1054

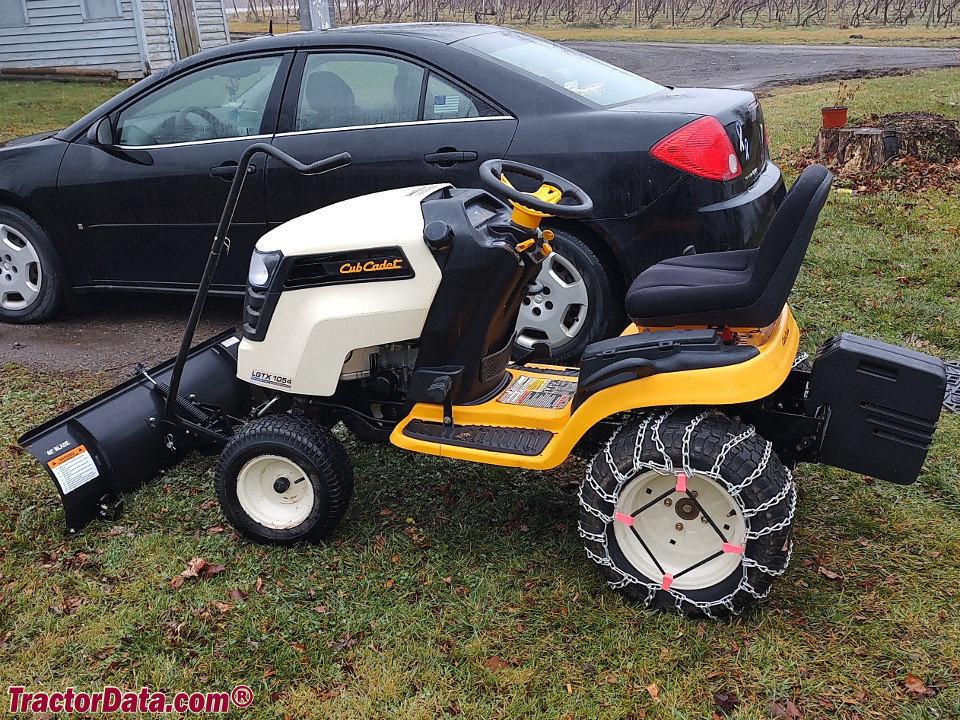

Cub Cadet LGTX 1054 lawn tractor photo
2012 - 2014
1000 Series
Lawn tractor
Series map:
LGTX 1050
LGTX 1054
25.0hp
27.0hp
Production
ManufacturerCub Cadet (a part of MTD)
Lawn tractor
Cub Cadet LGTX 1054 Engine
27HP Kohler 724cc 2-cyl gasoline
Fuel tank3.3 gal
12.5 L
Engine details ...
Cub Cadet LGTX 1054 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Power steering
Open operator station.
Photos
Cub Cadet LGTX 1054
Cub Cadet LGTX 1054 photos...
Power Take-off (PTO)
Mid PTOindependent
Clutchelectric
Dimensions & Tires
Wheelbase47.5 inches
120 cm
Weight567 lbs
257 kg
Front tire16x6.5-8
Rear tire22x9.5-12
Full dimensions and tires ...
Cub Cadet LGTX 1054 attachments
54" mid-mount mower deck
Attachment details ...
Electrical
Groundnegative
Charging systemflywheel alternator
Charging amps25
Battery CCA260
Battery volts12
References
LGTX 1054 references literature
Series 1000 published in 2012, by Cub Cadet
Series 1000 published in 2013, by Cub Cadet
Series 1000 published in 2014, by Cub Cadet
