Sears LT836

Sears LT836 lawn tractor photo
1979 - 1980
Lawn tractor
Roper built
Lawn tractor
Original price was $869 in 1979
Sears LT836 Engine
8HP 1-cyl gasoline
Fuel tank0.75 gal
2.8 L
Engine details ...
Two-wheel drive
Manual steering
Open operator station.
No photos of the Sears LT836 are currently available. To submit yours, email it to Photos may only be used with the permission of the original photographer.
Dimensions & Tires
Weight319 lbs
144 kg
Front tire15x6.0
Rear tire18x9.50
Full dimensions and tires ...
LT836 Serial Numbers
1978917.25512 (model code)
1979917.25526 (model code)

FAQ: How to read a serial number table.
Charging systemalternator
Battery volts12
Battery AH14

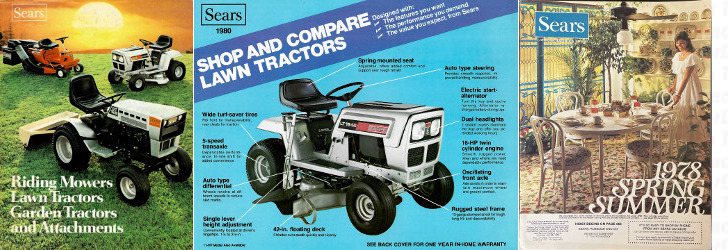

LT836 references literature
Riding Mowers, Lawn Tractors, Garden Tractors and Attachments published in 1979, by Sears
Lawn Tractors published in 1980, by Sears
Spring/Summer Catalog published in 1978, by Sears
