Ariens RM828
|
|
| Production | |
| Manufacturer | Ariens |
| Riding lawn mower | |
| Built in Brillion, Wisconsin, USA | |
| Original price was $1,199 in 1985 | |
| Variants | |
| 927009 | Tecumseh VM80 recoil |
| 927021 | Tecumseh TVM195 recoil |
| 927031 | Tecumseh TVM195 electric |
| 927039 | Tecumseh TVXL195 electric |
| 927042 | Kawasaki FC290 electric |
| 927045 | Briggs 19 electric |
| Ariens RM828 Engines | |
| 8HP Tecumseh 305cc 1-cyl gasoline | |
| 8HP Tecumseh 318cc 1-cyl gasoline | |
| 8HP Kawasaki 286cc 1-cyl gasoline | |
| 8HP Briggs & Stratton 318cc 1-cyl gasoline | |
| Fuel tank | 0.75 gal 2.8 L |
 Engine details ... | |
| Ariens RM828 Transmission | |
| 6-speed fiction disc | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Mechanical band brakes | |
| Open operator station. |

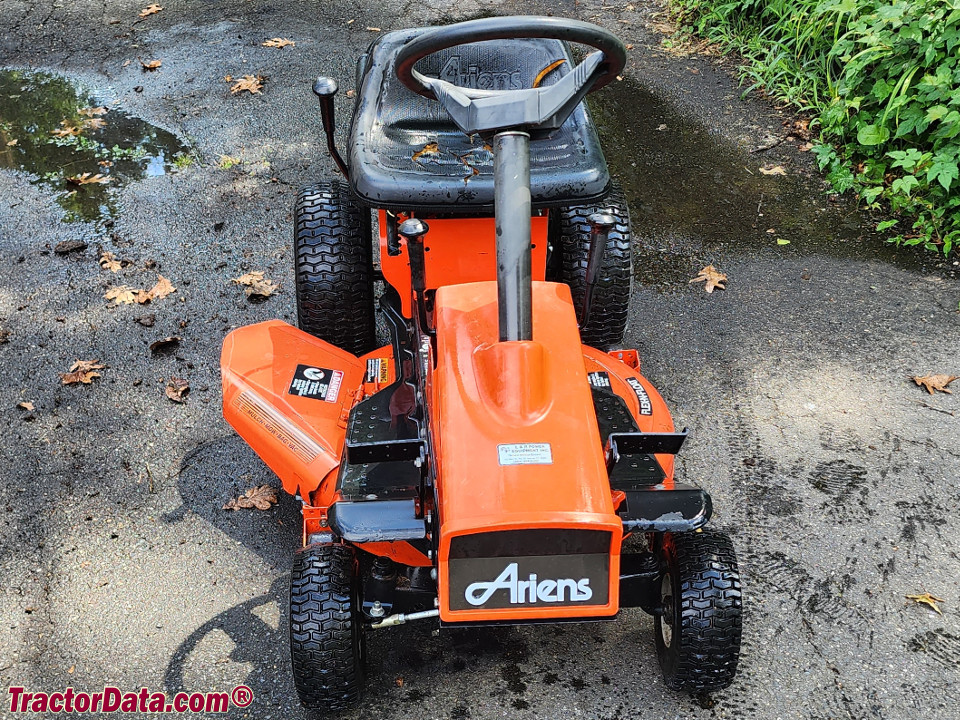

| Photos | |
 | |
 Ariens RM828 photos... | |
| Power Take-off (PTO) | |
| Mid PTO | independent |
| Clutch | idler pulley |
| Dimensions & Tires | |
| Wheelbase | 45.5 inches 115 cm |
| Weight | 375 lbs 170 kg |
| Front tire | 4.10-3.50x4 |
| Rear tire | 4.80-4.00x8 |
 Full dimensions and tires ... | |
| Ariens RM828 attachments | |
| 28" mid-mount mower deck | |
| blade | |
 Attachment details ... |
| RM828 Serial Number Location | |
 | |
| RM828 Serial Numbers | |
FAQ: How to read a serial number table. |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
| References | |
 | |
| Riding Mowers published in 1980, by Ariens | |
| Mowers - Tractors - Tillers published in 1987, by Ariens |
