Ariens RM1230
|
|
| Production | |
| Manufacturer | Ariens |
| Riding lawn mower | |
| Built in Brillion, Wisconsin, USA | |
| Original price was $1,599 in 1990 | |
| Variants |
| Ariens RM1230 Engine | |
| 12HP Briggs & Stratton 465cc 1-cyl gasoline | |
| Fuel tank | 0.75 gal 2.8 L |
 Engine details ... | |
| Ariens RM1230 Transmission | |
| 6-speed fiction disc | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Mechanical band brakes | |
| Open operator station. |
| Photos | |
 | |
 Ariens RM1230 photos... | |
| Power Take-off (PTO) | |
| Mid PTO | independent |
| Clutch | idler pulley |
| Dimensions & Tires | |
| Wheelbase | 45.5 inches 115 cm |
| Front tire | 4.10-3.50x4 |
| Rear tire | 16-6.50x8 |
 Full dimensions and tires ... | |
| Ariens RM1230 attachments | |
| 30" mid-mount mower deck | |
| blade | |
 Attachment details ... |

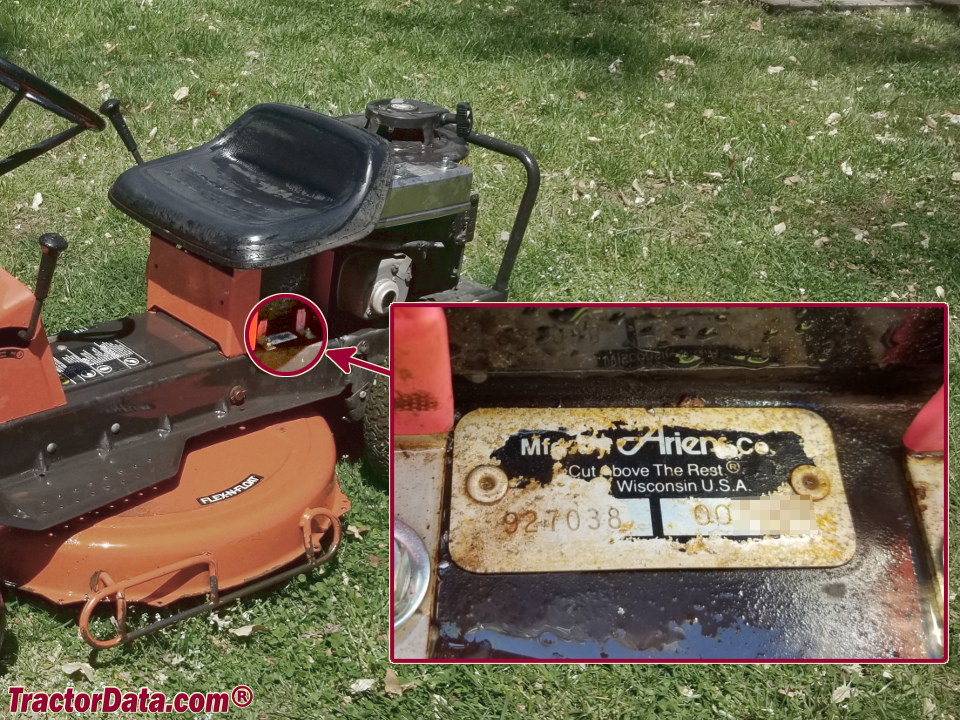

| RM1230 Serial Number Location | |
 | |
| Serial number plate on the left side of the mower frame, below the seat. |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
