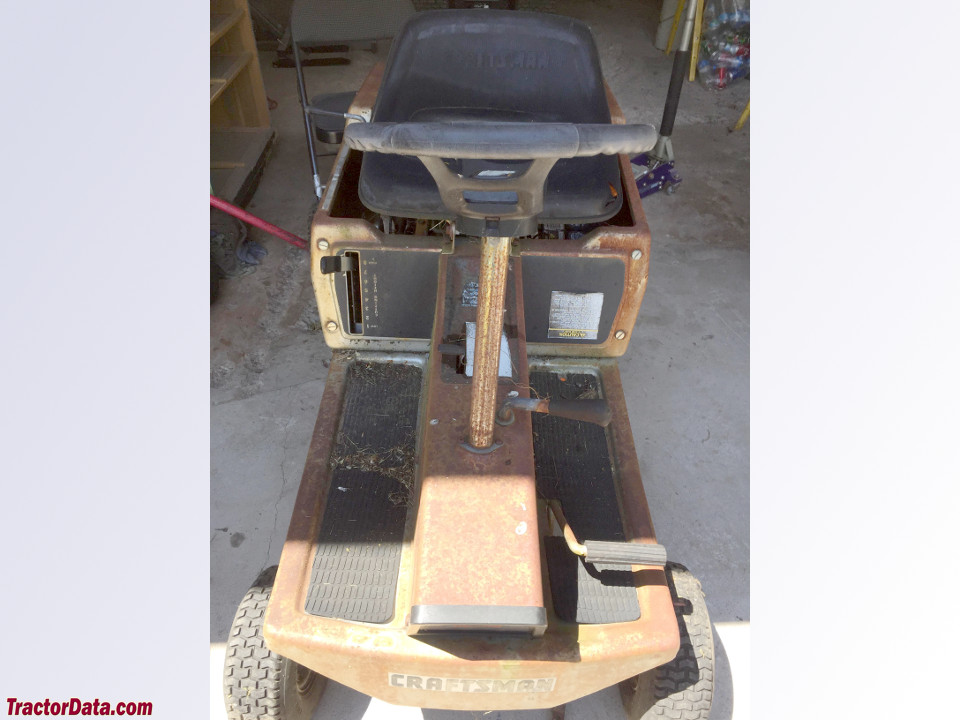

Craftsman 502.25417
|
|
| Production | |
| Distributor | Craftsman (a part of Sears) |
| Manufacturer | Murray |
| Riding lawn mower | |
| Original price was $1,077 in 1989 | |
| Craftsman 502.25417 Engine | |
| 10HP Tecumseh 357cc 1-cyl gasoline | |
| Fuel tank | 0.75 gal 2.8 L |
 Engine details ... | |
| Craftsman 502.25417 Transmission | |
| 5-speed gear | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Open operator station. |
| Dimensions & Tires | |
| Weight | 360 lbs 163 kg |
| Front tire | 11x4.0 |
| Rear tire | 15x6.0 |
 Full dimensions and tires ... | |
| Craftsman 502.25417 attachments | |
| 30" mid-mount mower deck | |
 Attachment details ... |
| 502.25417 Serial Numbers | |
| Location: | Serial number plate on under the seat on the mount. |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
| References | |
 | |
| Craftsman Lawn and Garden Riding Equipment and Attachments published in 1989, by Sears | |
| Home, Hardware, Auto and Leisure Catalog published in 1989, by Sears |
