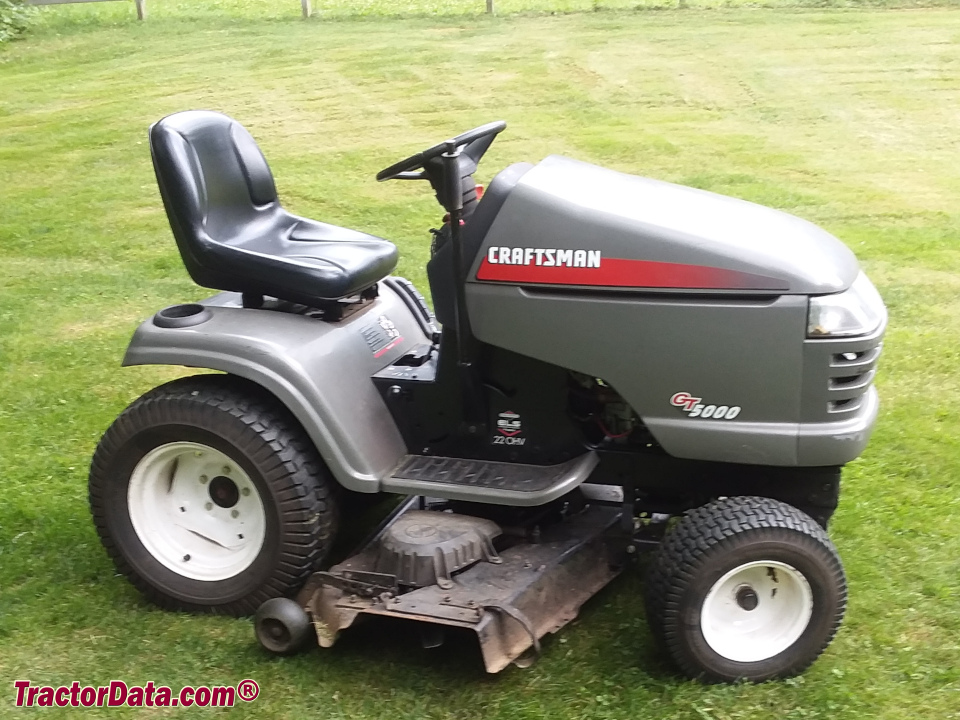

Craftsman 917.27597
| | 2003 |
| GT 5000 Series | | Garden tractor | | AYP built |
|
Series map:
917.27597
22.0hp
| Production |
| Distributor | Craftsman (a part of Sears)
|
| Manufacturer | AYP
|
| Garden tractor |
| Mechanical |
| Two-wheel drive |
| Manual steering |
| Open operator station. |
| Power Take-off (PTO) |
| Mid PTO | independent
|
| Clutch | electric
|
| Mid PTO Type | pulley
|
| 917.27597 Serial Numbers |
| Location: | Serial number decal on the rear fender deck, below the seat.
|
| Electrical |
| Ground | negative
|
| Charging amps | 16
|
| Battery CCA | 280
|
| Battery volts | 12
|
| Battery AH | 35
|
| Battery Group | U1R
|
| References |
 |
| Owner's Manual 917.275970 (185380) published in 2003 |
| 2003 Riding Equipment and Attachments published by Sears |
| Page information |
 |
| Copyright 2025 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on May 8, 2025 |
©2000-2025 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...
Transmission details ...
Full dimensions and tires ...
Attachment details ...
