Craftsman T105 CMXGRAM7821242

Craftsman T105 CMXGRAM7821242 lawn tractor photo
2019 - 2020
Lawn tractor
MTD built
DistributorCraftsman (a part of Stanley)
Lawn tractor
Built in Willard, Ohio, USA
Craftsman T105 Engine
9.5HP Chongqing Zongshen 439cc 1-cyl gasoline
Fuel tank1.3 gal
4.9 L
Engine details ...
Two-wheel drive
Manual steering
Open operator station.
Power Take-off (PTO)
Mid PTOindependent
Dimensions & Tires
Weight510 lbs
231 kg
Front tire15x6-6
Rear tire20x8-8
Full dimensions and tires ...
Craftsman T105 attachments
42" mid-mount mower deck
Attachment details ...
T105 Serial Numbers
T105 Serial Location

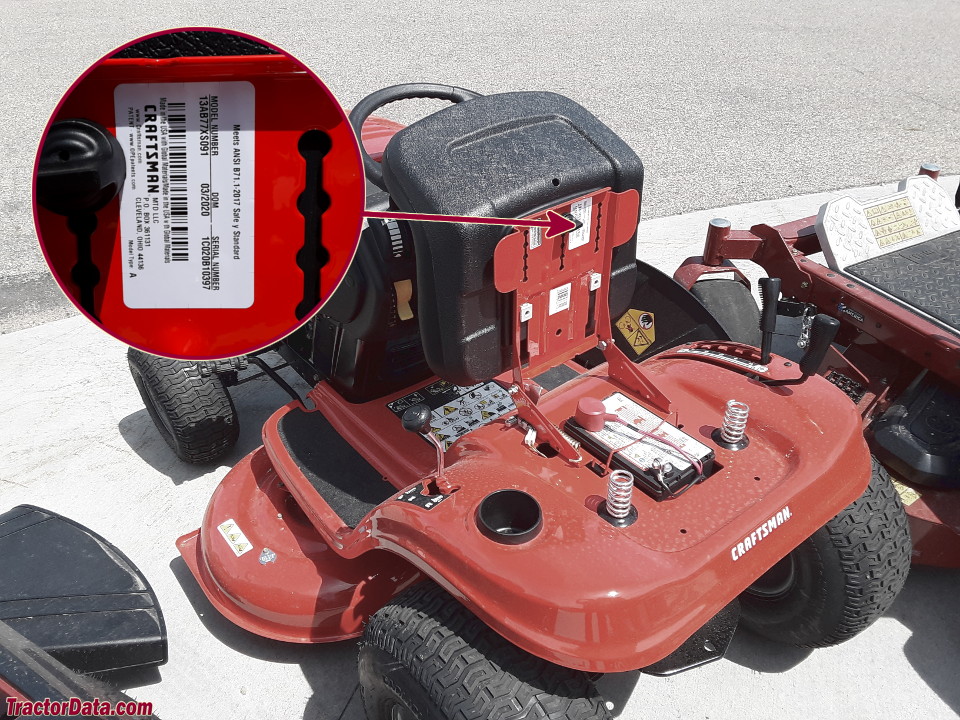

Craftsman T105 serial number location
Serial number decal on the bottom of the seat mounting bracket.
Battery volts12
