Craftsman 917.25597 Engine

Craftsman 917.25597 lawn tractor photo
Garden tractor
AYP built
Engine Detail
Briggs & Stratton 422707
air-cooled vertical-shaft opposed twin
Displacement693 cc
42.33 ci
Bore/Stroke3.44x2.28 inches
87 x 58 mm
Power18 hp
13.4 kW
Starter volts12
SparkplugChampion RJ-19LM
Sparkplug gap0.025 inches
0.635 mm
Engine Oil
917.25597 gasoline engine oil chart
Oil capacity1.5 qts
1.4 L
Oil change25 h

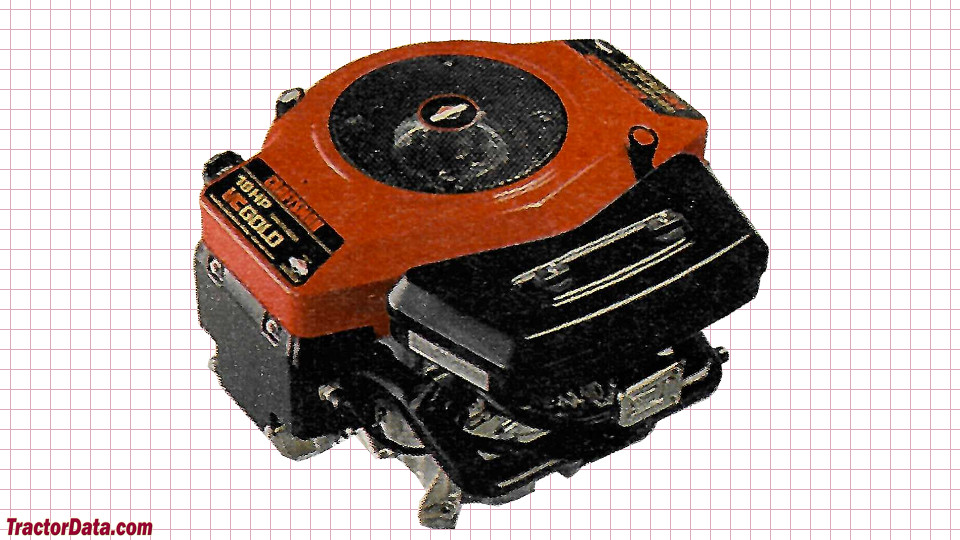

Craftsman 917.25597 Engine
Craftsman 917.25597 engine image
