Craftsman 917.25543 Engine


Craftsman 917.25543 lawn tractor photo
1993
Lawn tractor
AYP built
Engine Detail
Briggs & Stratton 286707
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement465 cc
28.4 ci
Bore/Stroke3.44x3.06 inches
87 x 78 mm
Power12.5 hp
9.3 kW
Starterelectric
Starter volts12
SparkplugChampion RJ-19LM
Sparkplug gap0.030 inches
0.762 mm
Engine Oil
917.25543 gasoline engine oil chart
Oil capacity1.5 qts
1.4 L
Oil change25 h

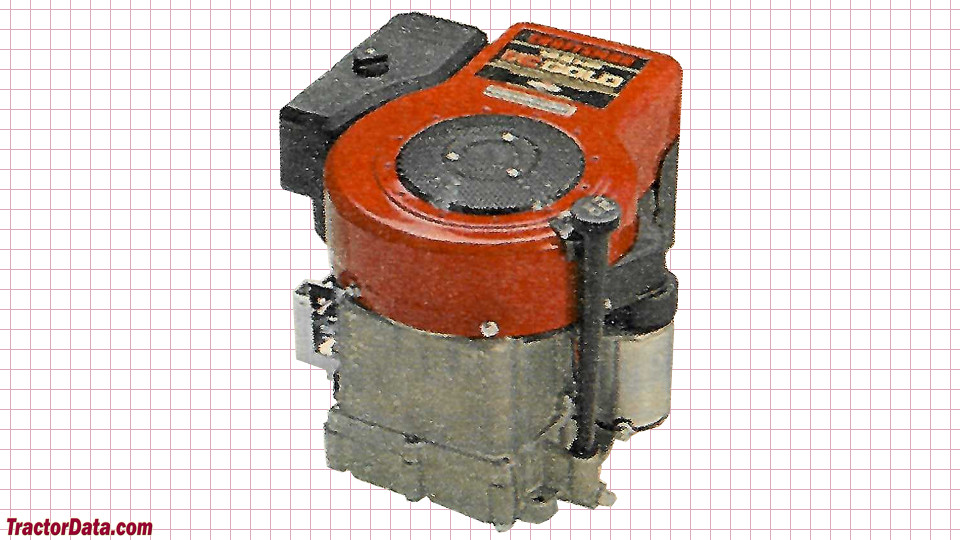

Craftsman 917.25543 Engine
Craftsman 917.25543 engine image
