Wheel Horse 418-A


Wheel Horse 418-A lawn tractor photo
1987
400 Series
Garden tractor
Production
ManufacturerWheel Horse (a part of Toro)
TypeGarden tractor
FactorySouth Bend, Indiana, USA
Variants
418-8gear
418-Ahydrostatic
418-Ccommercial duty
Wheel Horse 418-A Engine
18HP Kohler 691cc 2-cyl gasoline
Fuel tank3 gal
11.4 L
Engine details ...
Mechanical
Chassis4x2 2WD
Steeringmanual
CabOpen operator station.
Tractor hitch
Typesleeve hitch OptOptional
Dimensions & Tires
Wheelbase45.5 inches
115 cm
Weight739 lbs
335 kg
Front tire16x6.50-8
Rear tire23x9.50-12
Full dimensions and tires ...
Wheel Horse 418-A attachments
36" mid-mount mower deck
42" mid-mount mower deck
48" mid-mount mower deck
snowblower
blade
Attachment details ...
418-A Serial Numbers
198731-18KE01

How to read a serial number table...
418-A Serial Location

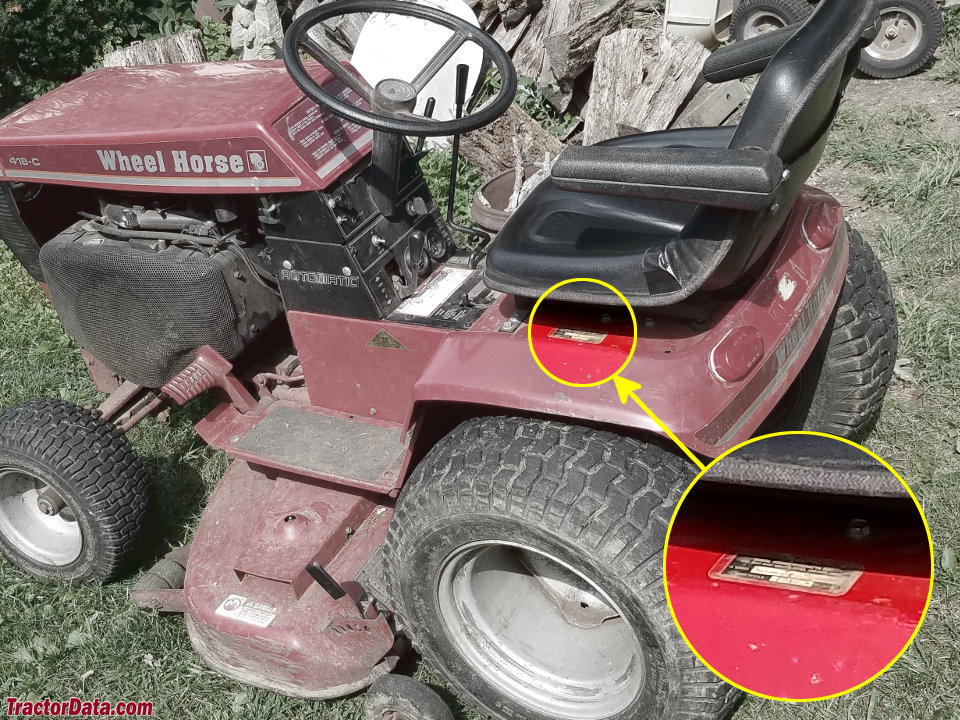

Wheel Horse 418-A serial number location
Serial number plate on the left side of the Wheel Horse 418-A rear fender deck, below the seat. Model numbers shown.
Electrical
Groundnegative
Charging amps15
Battery volts12
Battery AH32
