J.I. Case 110 XC
|
|
| Production | |
| Distributor | J.I. Case |
| Manufacturer | Ingersoll |
| Lawn tractor | |
| J.I. Case 110 XC Engine | |
| 10HP Briggs & Stratton 360cc 1-cyl gasoline | |
| Fuel tank | 1 gal 3.8 L |
 Engine details ... | |
| J.I. Case 110 XC Transmission | |
| 5-speed gear | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Disc brakes | |
| Open operator station. |

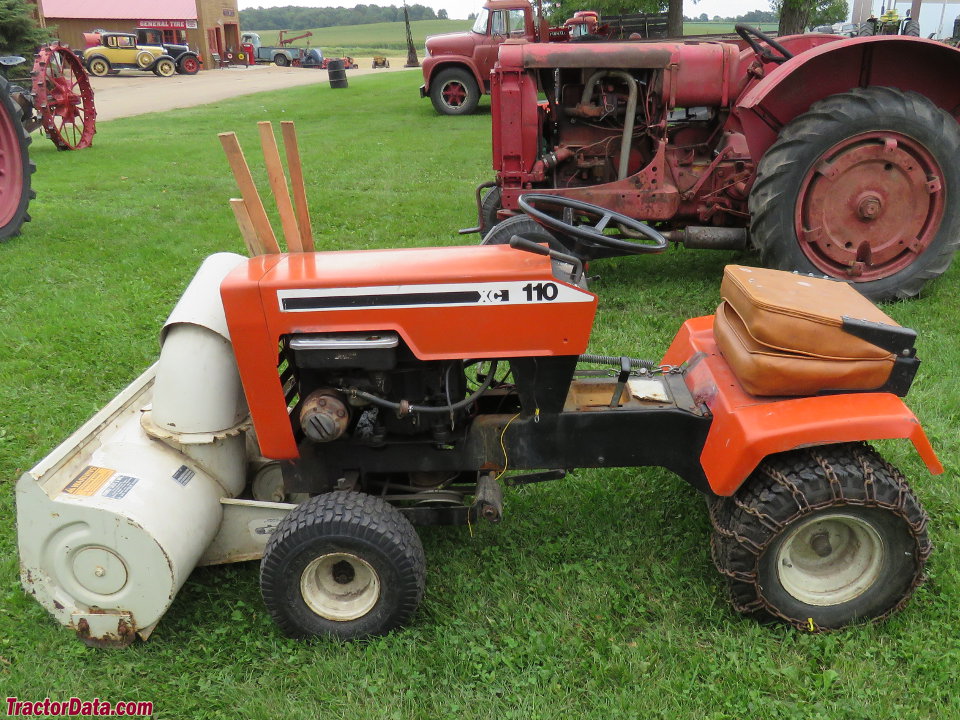

| Photos | |
 | |
 J.I. Case 110 XC photos... | |
| Power Take-off (PTO) | |
| Mid PTO | independent |
| Clutch | mechanical idler pulley |
| Dimensions & Tires | |
| Wheelbase | 42 inches 106 cm |
| Weight | 312 lbs 141 kg |
| Front tire | 5.00-6 |
| Rear tire | 8.50-8 |
 Full dimensions and tires ... | |
| J.I. Case 110 XC attachments | |
| 34" mid-mount mower deck | |
| 44" mid-mount mower deck | |
| snowblower | |
| blade | |
 Attachment details ... |

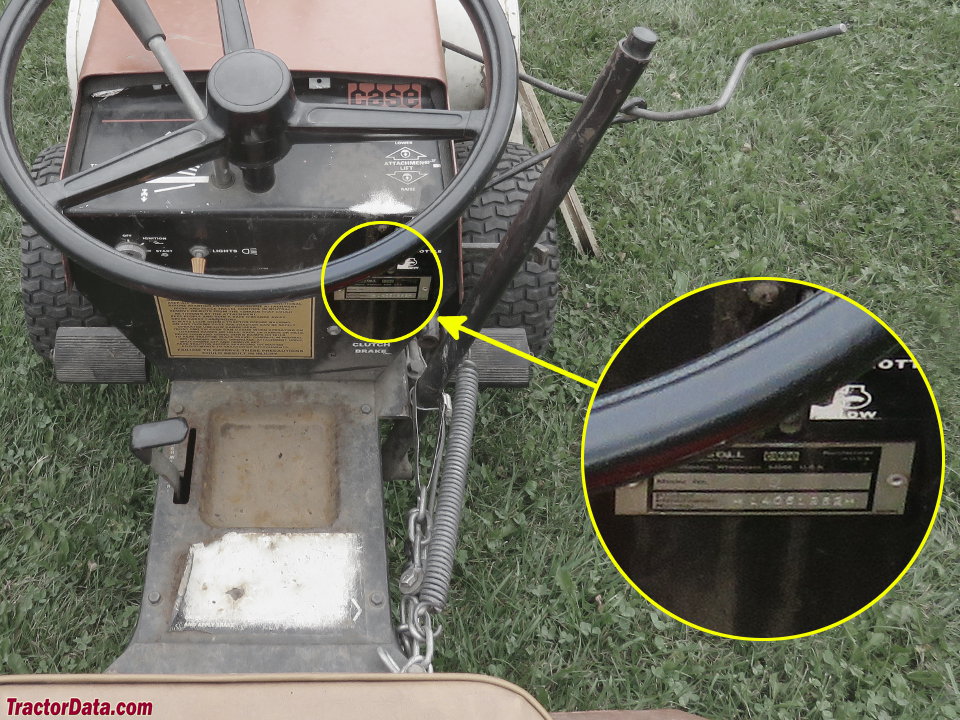

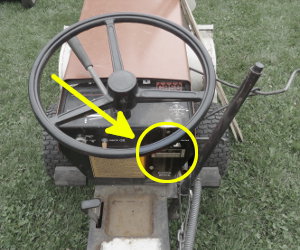

| 110 XC Serial Number Location | |
 | |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
| References | |
 | |
| Case Lawn/Garden Tractors published in 1984, by J.I. Case | |
| The Tractor Specialist Buyers Guide published in 1984, by J.I. Case | |
| Tractor & Loaders Buyers Guide published in 1985, by J.I. Case | |
| Lawn & Garden Tractors published in 1984, by Ingersoll |
