Wheel Horse 520-H
|
|
| Production | |
| Manufacturer | Wheel Horse (a part of Toro) |
| Garden tractor | |
| Wheel Horse 520-H Engine | |
| 20HP Onan 781cc 2-cyl gasoline | |
| Fuel tank | 1.75 gal 6.6 L |
 Engine details ... | |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Open operator station. |
| Photos | |
 | |
 Wheel Horse 520-H photos... | |
| Dimensions & Tires | |
| Wheelbase | 47.5 inches 120 cm |
| Weight | 664 lbs 301 kg |
| Front tire | 16x7.50-8 |
| Rear tire | 23x10.50-12 |
 Full dimensions and tires ... | |
| Wheel Horse 520-H attachments | |
| 42" mid-mount mower deck | |
| 48" mid-mount mower deck | |
| 60" mid-mount mower deck | |
| snowblower | |
| blade | |
| front-end loader | |
 Attachment details ... |

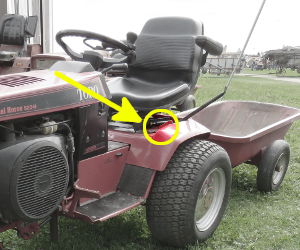

| 520-H Serial Number Location | |
 | |
| Serial number plate on the rear fender, below the seat. Model codes in parentheses. |
| 520-H Serial Numbers | |
| 1988 | 520-H (31-20OE01) |
| 1988 | 520-HC (C1-20OE01) |
| 1989 | 520-H (31-20OE02) |
| 1989 | 520-HC (C1-20OE02) |
| 1990 | -unknown- |
| 1991 | -unknown- |
| 1992 | -unknown- |
| 1993 | 39000001 (73501) |
| 1994 | 49000001 (73501) |
| 1995 | 59000001 (73501) |
| 1996 | 69000001 (73501) |
| 1996 | 69000001 (73502) |
| 1997 | 7900001 (73502) |
FAQ: How to read a serial number table. | |
| Electrical | |
| Ground | negative |
| Charging amps | 20 |
| Battery CCA | 280 |
| Battery volts | 12 |
| References | |
 | |
| Lawn and Garden Tractors published in 1996, by Toro | |
| Wheel Horse Lawn & Garden Equipment published in 1990 | |
| 1991 Toro Wheel Horse Garden Tractors | |
| Garden Tractors Zero-Radius Tractors 1992 Catalog published by Wheel Horse | |
 | |
| Operator's Manual 500 Series Garden Tractor (3314-739) published in 1992 | |
| Operator's Manual Wheel Horse 500 Series Garden Tractor (3315-391) published in 1993 | |
| Operator's Manual Wheel Horse 520H Garden Tractor (3319-274) published in 1997 | |
| Operator's Manual 500 Series Hydrostatic Garden Tractor (810619R1) published in 1990 |
