Jacobsen Chief 100
|
|
| Production | |
| Manufacturer | Jacobsen |
| Garden tractor | |
| Built in Racine, Wisconsin, USA | |
| Variants | |
| 100C | electric start |
| 100D | manual start |
| Jacobsen Chief 100 Engine | |
| 7HP Kohler 265cc 1-cyl gasoline | |
| Fuel tank | 1.25 gal 4.7 L |
 Engine details ... | |
| Jacobsen Chief 100 Transmission | |
| 3-speed gear | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Mechanical band brakes | |
| Open operator station. |

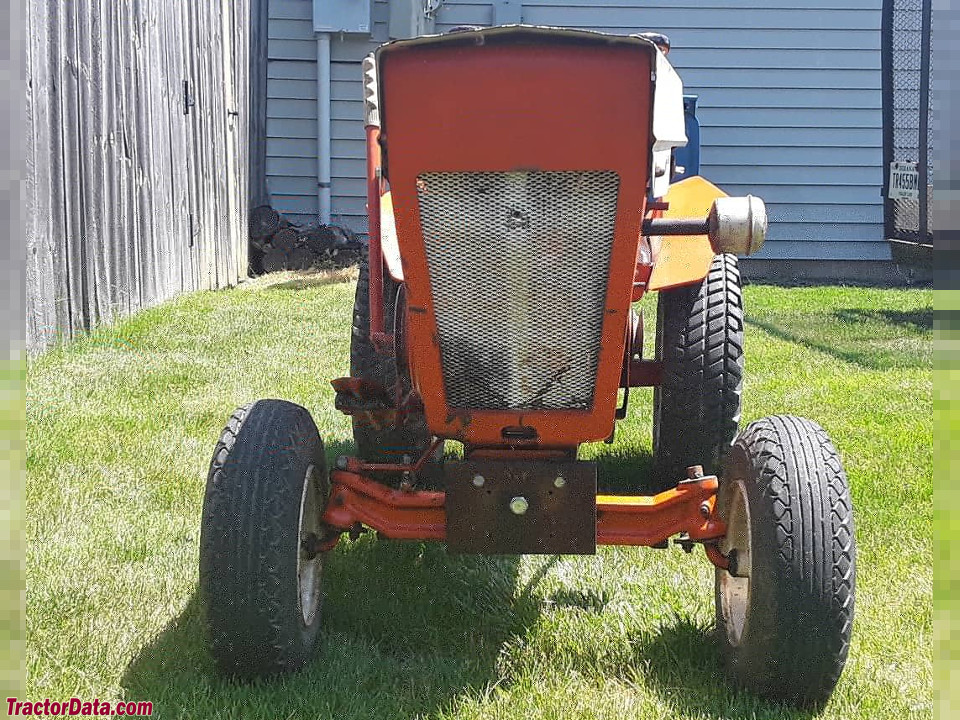

| Photos | |
 | |
 Jacobsen Chief 100 photos... | |
| Dimensions & Tires | |
| Wheelbase | 42 inches 106 cm |
| Weight | 415 to 465 pounds |
| Front tire | 4.00/4.80x8 |
| Rear tire | 6.00x12 |
 Full dimensions and tires ... | |
| Jacobsen Chief 100 attachments | |
| 36" mid-mount mower deck | |
| snowblower | |
| blade | |
 Attachment details ... |
| Chief 100 Serial Numbers | |
| Location: | Serial number plate on the bottom of the dash panel, just above the frame. |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
| References | |
 | |
| Lawn and Garden Power Equipment for '63 published in 1963, by Jacobsen |
