Bolens 3018H ST180

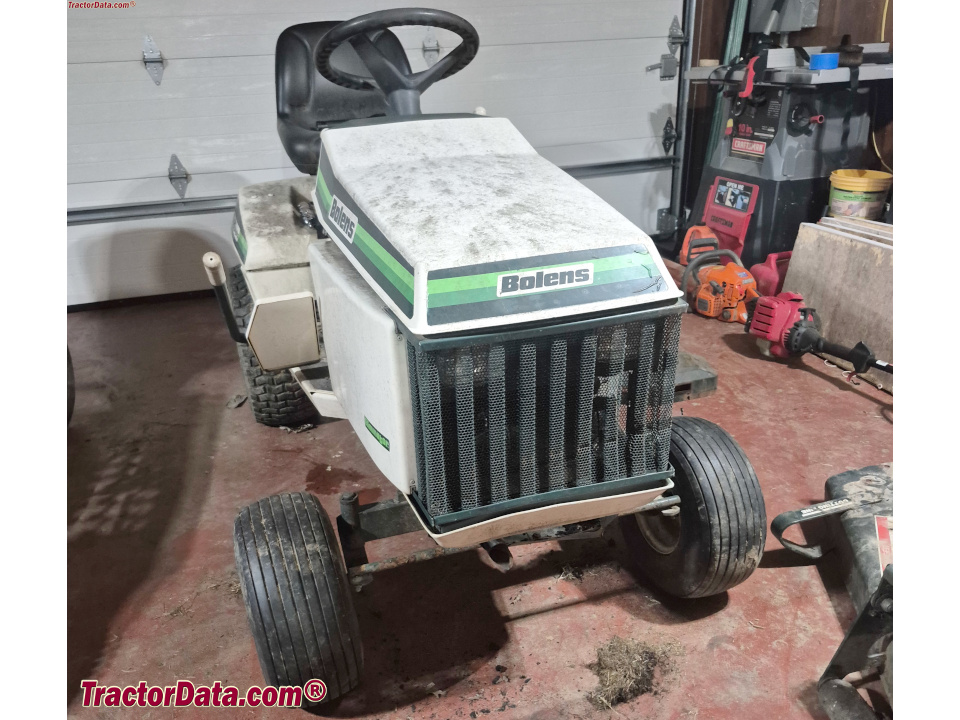

Bolens 3018H ST180 lawn tractor photo
1988 - 1990
Suburban Series
Garden tractor
Production
Manufacturer:Bolens
Type:Garden tractor
Factory:Port Washington, Wisconsin, USA
Variants
3018G:gear
3018H:hydrostatic
Bolens 3018H Engine
18HP Briggs & Stratton 693cc 2-cyl gasoline
Engine details ...
Mechanical
Chassis:4x2 2WD
Steering:manual
Brakes:disc
Cab:Open operator station.
Transmission:hydrostatic
Transmission details ...
Photos
No photos of the Bolens 3018H are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel:5 gal
18.9 L
Power Take-off (PTO)
Mid PTO:independent
Clutch:electric
Dimensions & Tires
Wheelbase:45 inches
114 cm
Weight:515 lbs
233 kg
Front tire:15x6.00-6
Rear tire:20x8.00-10
Full dimensions and tires ...
Bolens 3018H attachments
36" mid-mount mower deck
42" mid-mount mower deck
48" mid-mount mower deck
snowblower
blade
Attachment details ...
3018H Serial Numbers
Location:Serial number tag on the rear fender, under the tractor seat, on the left side.
Electrical
Ground:negative
Charging amps:16
Battery
Number:1
Volts:12
Amp-hours:45
