Bolens 3016H ST160

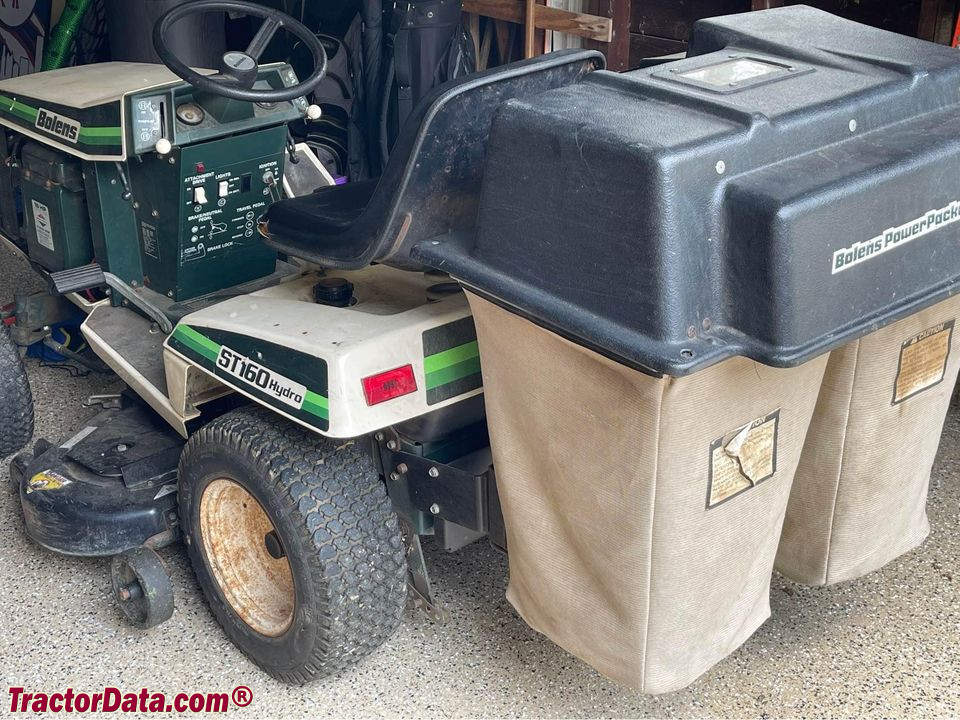

Bolens 3016H ST160 lawn tractor photo
1984 - 1985
Suburban Series
Garden tractor
Production
ManufacturerBolens
Garden tractor
Built in Port Washington, Wisconsin, USA
Variants
3016Ggear
3016Hhydrostatic
Bolens 3016H Engine
16HP Briggs & Stratton 655cc 2-cyl gasoline
Fuel tank5 gal
18.9 L
Engine details ...
Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.
Photos
No photos of the Bolens 3016H are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Power Take-off (PTO)
Mid PTOindependent
Clutchelectric
Dimensions & Tires
Wheelbase45 inches
114 cm
Weight486 lbs
220 kg
Front tire15x6.50-6
Rear tire20x8.00-10
Full dimensions and tires ...
Bolens 3016H attachments
36" mid-mount mower deck
42" mid-mount mower deck
snowblower
blade
Attachment details ...
3016H Serial Numbers
Location:Serial number tag on the rear fender, under the tractor seat, on the left side.
Electrical
Groundnegative
Battery volts12
Battery AH45
References
3016H ST160 references literature
Suburban Tractors published in 1984, by Bolens
