Bolens 3011G ST110

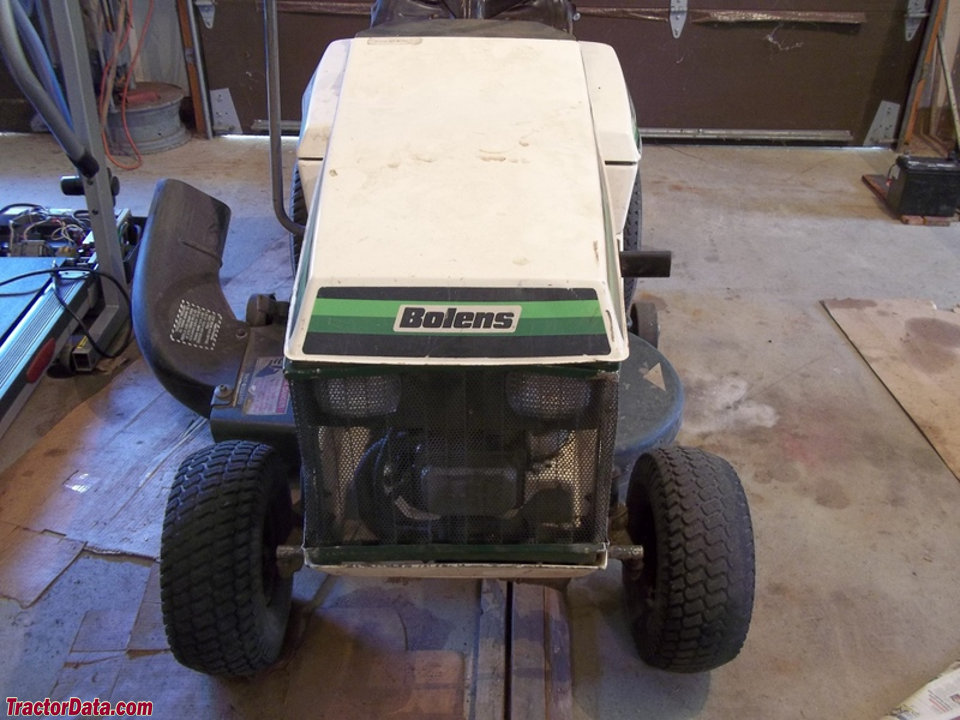

Bolens 3011G ST110 lawn tractor photo
1984 - 1986
Suburban Series
Garden tractor
Production
ManufacturerBolens
TypeGarden tractor
FactoryPort Washington, Wisconsin, USA
Variants
3011Ggear
3011Hhydrostatic
Bolens 3011G Engine
11HP Briggs & Stratton 399cc 1-cyl gasoline
Fuel tank5 gal
18.9 L
Engine details ...
Mechanical
Chassis4x2 2WD
Steeringmanual
Brakesdisc
CabOpen operator station.
Power Take-off (PTO)
Mid PTOindependent
Clutchelectric
Dimensions & Tires
Wheelbase45 inches
114 cm
Front tire15x6.00-6
Rear tire20x8.00-10
Full dimensions and tires ...
Bolens 3011G attachments
36" mid-mount mower deck
42" mid-mount mower deck
snowblower
blade
Attachment details ...
3011G Serial Numbers
Location:Serial number tag on the rear fender, under the tractor seat, on the left side.
Electrical
Groundnegative
Battery volts12
Battery AH45
