Simplicity Sovereign 18H


Simplicity Sovereign 18H lawn tractor photo
1993 - 2000
Sovereign Series
Garden tractor
Production
ManufacturerSimplicity
TypeGarden tractor
FactoryPort Washington, Wisconsin, USA
Simplicity Sovereign 18H Engine
18HP Kohler 622cc 2-cyl gasoline
Fuel tank3 gal
11.4 L
Engine details ...
Mechanical
Chassis4x2 2WD
Steeringmanual
Steeringpower OptOptional
CabOpen operator station.
Power Take-off (PTO)
Mid PTOindependent
Clutchmanual
Dimensions & Tires
Wheelbase50.7 inches
128 cm
Weight689 lbs
312 kg
Front tire16x6.50-8
Rear tire23x10.5-12
Full dimensions and tires ...
Simplicity Sovereign 18H attachments
42" mid-mount mower deck
48" mid-mount mower deck
snowblower
blade
Attachment details ...
Sovereign 18H Serial Numbers
Sovereign 18H Serial Location
Simplicity Sovereign 18H serial number location
Serial number tag on the left side of the tractor frame, above the front axle.
Electrical
Groundnegative
Battery volts12
References

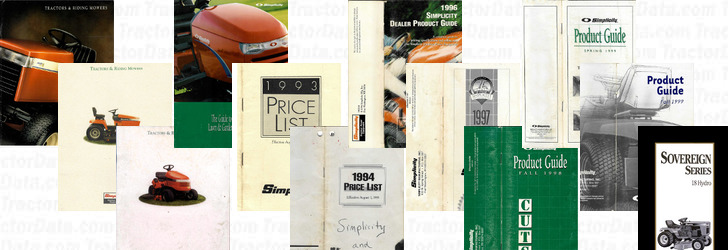

Sovereign 18H reference literature
Operator's Manual Sovereign Series (1715789) published in 2002, by Simplicity
