MTD 860 Twelve Hundred
|
|
| Production | |
| Manufacturer | MTD |
| Garden tractor | |
| Built in Strongsville, Ohio, USA | |
| MTD 860 Engine | |
| 12HP Briggs & Stratton 399cc 1-cyl gasoline | |
| Fuel tank | 1.5 gal 5.7 L |
 Engine details ... | |
| MTD 860 Transmission | |
| 4-speed gear | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Manual steering | |
| Open operator station. |
| Photos | |
| No photos of the MTD 860 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. | |
| Power Take-off (PTO) | |
| Mid PTO | independent |
| Clutch | manual |
| Mid PTO Type | pulley |
| Dimensions & Tires | |
| Wheelbase | 44.5 inches 113 cm |
| Weight | 750 lbs 340 kg |
| Front tire | 16x6.50-8 |
| Rear tire | 23x8.50-12 |
 Full dimensions and tires ... | |
| MTD 860 attachments | |
| 42" mid-mount mower deck | |
| snowblower | |
| blade | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |

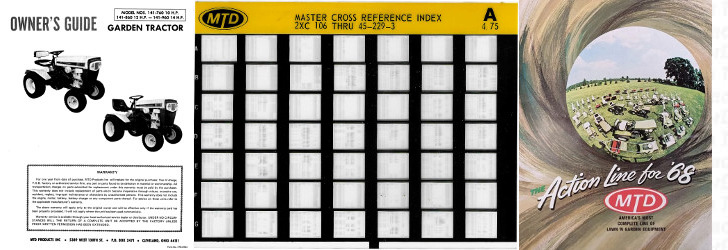

| References | |
 | |
| Owner's Guide 141-760 - 141-860 - 141-960 (770-2902) published in 1971 | |
| MTD Parts Microfiche (770-9101) published in 1974 | |
| The Action Line for '68 published in 1968, by MTD |
