Lawn Tractors > Simplicity > 404 990390

Simplicity 404 990390

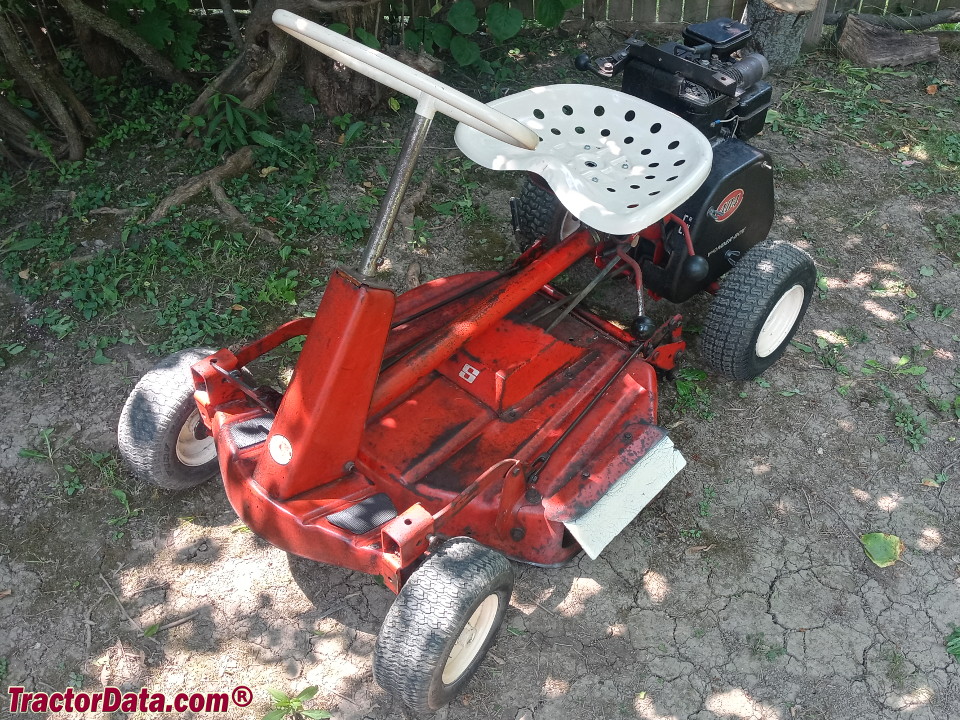

Simplicity 404 990390 lawn tractor photo
1967 - 1968
Wonder Boy Series
Riding lawn mower
Series map:
404
4.0hp
Production
ManufacturerSimplicity (a part of Allis Chalmers)
Riding lawn mower
Built in Port Washington, Wisconsin, USA
Original price was $280 in 1967
Simplicity 404 Engine
4HP Briggs & Stratton 170cc 1-cyl gasoline
Engine details ...
Simplicity 404 Transmission
2-speed gear
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Photos
No photos of the Simplicity 404 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Dimensions & Tires
Weight237 lbs
107 kg
Front tire10x2.75
Rear tire13x5.00-6
Full dimensions and tires ...
Simplicity 404 attachments
24" mid-mount mower deck
blade
Attachment details ...
References
404 990390 references literature
the new look of Simplicity action '67 published in 1967
Improve your lot in life published in 1968, by Simplicity
