Lawn Tractors > Simplicity > 10REG

Simplicity 10REG

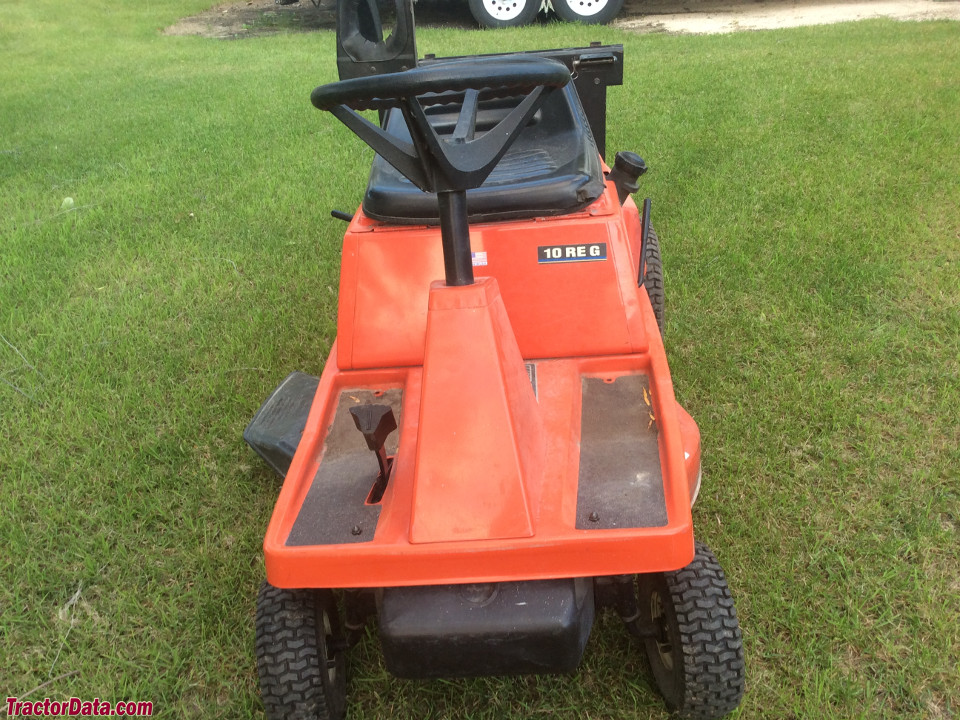

Simplicity 10REG lawn tractor photo
1990 - 1992
Cavalier 3100 Series
Riding lawn mower
Series map:
10REG
10.0hp
Production
ManufacturerSimplicity
Riding lawn mower
Built in Port Washington, Wisconsin, USA
Simplicity 10REG Engine
10HP Briggs & Stratton 361cc 1-cyl gasoline
Fuel tank1.25 gal
4.7 L
Engine details ...
Simplicity 10REG Transmission
5-speed gear
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Mechanical band brakes
Open operator station.
Photos
Simplicity 10REG
Simplicity 10REG photos...
Dimensions & Tires
Weight370 lbs
167 kg
Front tire4.10/3.50-4
Rear tire16x6.50-8
Full dimensions and tires ...
Simplicity 10REG attachments
30" mid-mount mower deck
36" mid-mount mower deck
Attachment details ...
Electrical
Groundnegative
Charging amps3
Battery volts12
References
10REG references literature
Outdoor Power Equipment published in 1990, by Simplicity
Outdoor Power Equipment published in 1992, by Simplicity
