Series map:
STX38
STX46
13.0hp
15.0hp
| Transmissions overview |
| hydrostatic |
| 5-speed gear transaxle |
| Transmission |
| Transmission | Tuff Torq K-55
|
| Type | belt-driven hydrostatic
|
| Gears | infinite forward and reverse
|
| Oil type |
|
| Oil change | sealed unit, owner service is not recommended
|

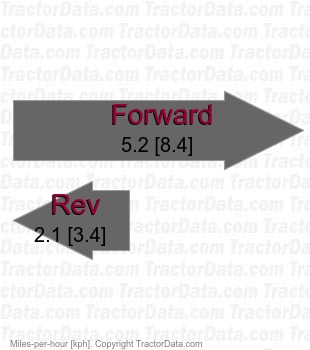

| Speeds |
|
| Transmission |
| Transmission | Dana 4360
|
| Type | belt-driven gear transaxle
|
| Gears | 5 forward and 1 reverse
|
| Oil capacity | 1 qts
0.9 L
|
| Oil change | sealed unit, owner service is not recommended
|

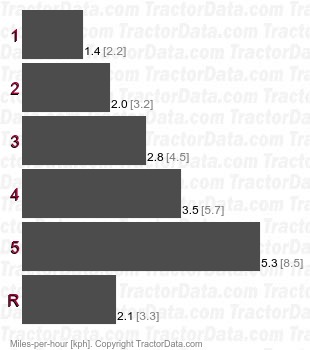

| Speeds |
|
