| | 2001 |
| LTX 1000 Series | | Lawn tractor | | AYP built |
|
| Engine Detail |
| Kohler CV492 |
| gasoline |
| 1-cylinder |
| air-cooled vertical-shaft |
| Displacement | 490 cc
29.9 ci
|
| Bore/Stroke | 3.60x3.03 inches
91 x 77 mm
|
| Power | 18 hp
13.4 kW
|
| Rated RPM | 3600
|
| Starter | electric
|
| Starter volts | 12
|
| Sparkplug | Champion RC12YC
|
| Sparkplug gap | 0.030 inches
0.762 mm
|

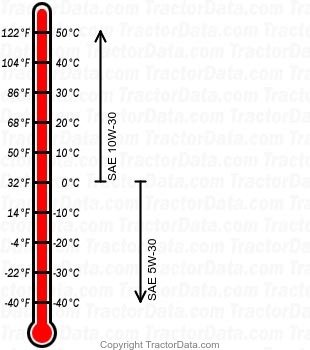

| Engine Oil |
|
| Oil change | 2.25 h
|
