Allis Chalmers B-10

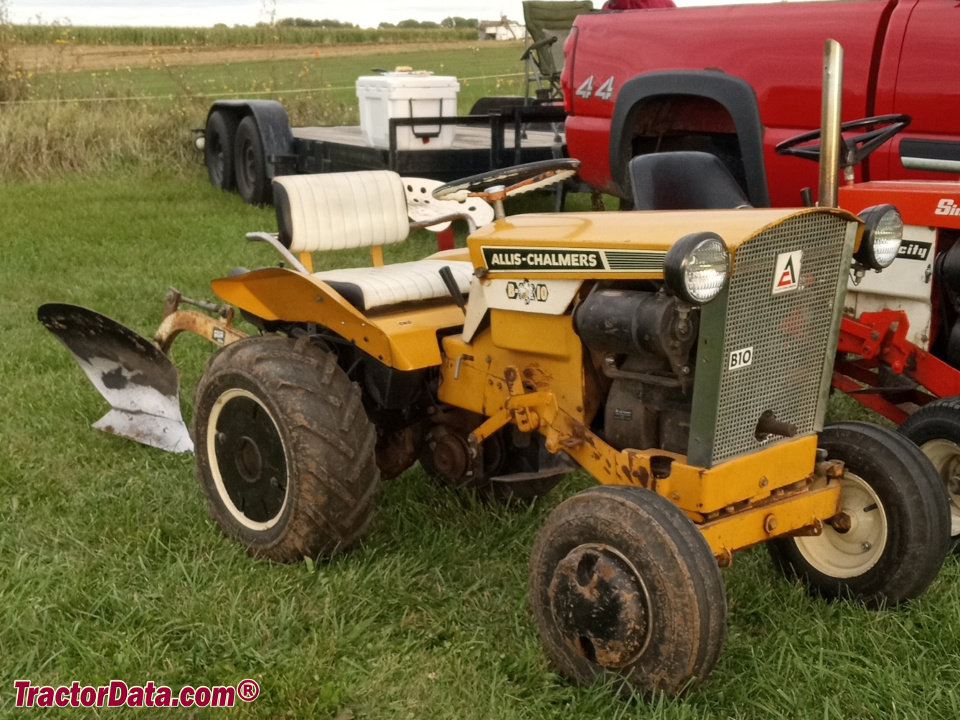

Allis Chalmers B-10 lawn tractor photo
1963 - 1968
Model year
B Series
Garden tractor
Series:B-10
B-110
Production
ManufacturerAllis Chalmers
TypeGarden tractor
FactoryPort Washington, Wisconsin, USA
Allis Chalmers B-10 Engine
10HP Briggs & Stratton 393cc 1-cyl gasoline
Fuel tank1.5 gal
5.7 L
Engine details ...
Mechanical
Chassis4x2 2WD
Steeringmanual
CabOpen operator station.
Photos
No photos of the Allis Chalmers B-10 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Power Take-off (PTO)
Rear PTOlive
Mid PTOlive
Front PTOlive
Dimensions & Tires
Wheelbase44 inches
111 cm
Weight685 lbs
310 kg
Front tire4.80x8
Rear tire23-8.50x12
Full dimensions and tires ...
Allis Chalmers B-10 attachments
32" mid-mount mower deck
42" mid-mount mower deck
snowblower
blade
Attachment details ...
B-10 Serial Numbers
Location:Serial number tag on the fender deck, behind the operator seat.
References
B-10 reference literature
Service Manual B Series Tractors published in 1976, by Allis-Chalmers
