Simplicity CFC 20

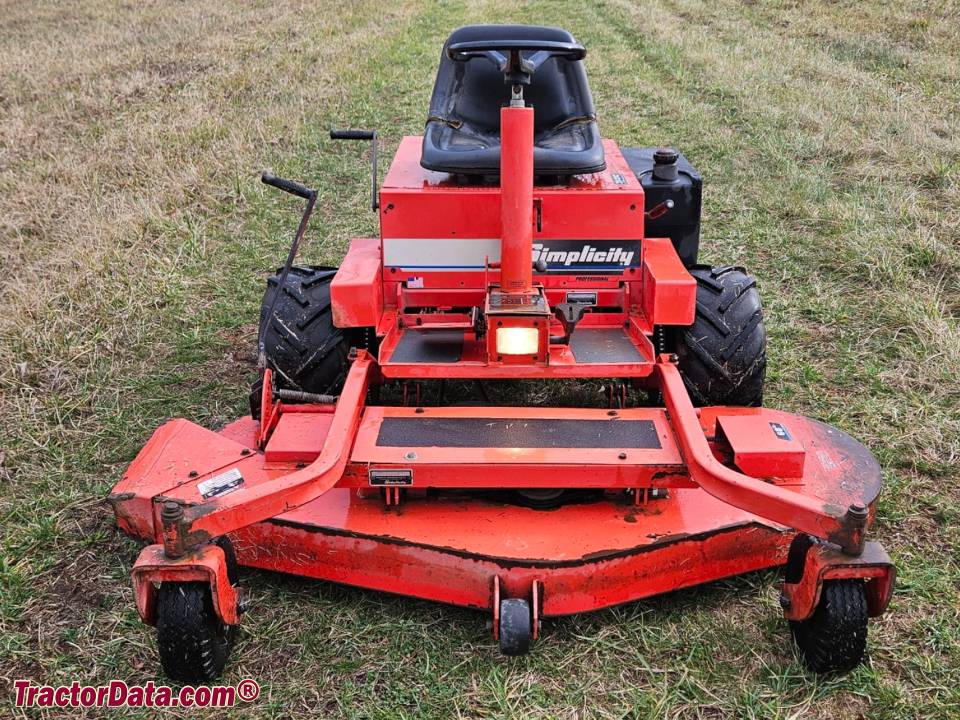

Simplicity CFC 20 lawn tractor photo
1990 - 1994
CFC Series
Front-mount mower
Series map:
CFC 18
CFC 20
Front-mount mower
Original price$5,280 (1991 )
$6,100 (1994 )
CFC 20steering wheel
CFC 20Llever steer
Simplicity CFC 20 Engine
20HP Kohler 770cc 2-cyl gasoline
Fuel tank4 gal (early)
15.1 L
 5.7 gal (late)
21.6 L
Engine details ...
Drive3x1 2WD
Power steering
Mechanical band brakes
Open operator station.
No photos of the Simplicity CFC 20 are currently available. To submit yours, email it to Photos may only be used with the permission of the original photographer.
Power Take-off (PTO)
Front PTOindependent
Clutchmechanical ilder pulley
Dimensions & Tires
Weight690 lbs
312 kg
Front tire18x9.50-8
Rear tire13x5.00-6
Full dimensions and tires ...
Simplicity CFC 20 attachments
46" front-mount mower deck
54" front-mount mower deck
60" front-mount mower deck
66" front-mount mower deck
Attachment details ...
Charging amps15
Battery CCA340
Battery volts12
CFC 20 references literature
The Professional Line published in 1989, by Simplicity
1991 Pocket Price List published in 1990, by Simplicity
1993 Price List published in 1992, by Simplicity
1994 Price List published in 1993, by Simplicity
