Simplicity Landlord 2010

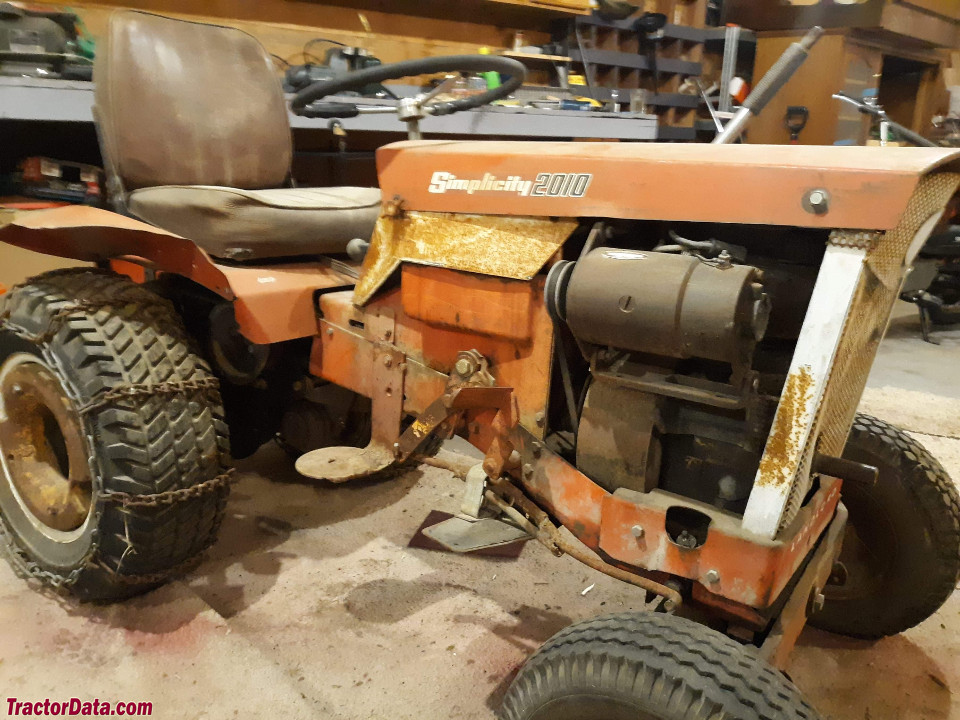

Simplicity Landlord 2010 lawn tractor photo
1967
Landlord Series
Garden tractor
Series map:
Landlord 2010
Landlord 2012
10.0hp
12.0hp
Production
ManufacturerSimplicity (a part of Allis Chalmers)
Garden tractor
Built in Port Washington, Wisconsin, USA
Variants
990395mechanical lift
990396hydraulic lift
Simplicity Landlord 2010 Engine
10HP Briggs & Stratton 392cc 1-cyl gasoline
Engine details ...
Simplicity Landlord 2010 Transmission
3-speed gear
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Mechanical band brakes
Open operator station.
Photos
Simplicity Landlord 2010
Simplicity Landlord 2010 photos...
Power Take-off (PTO)
Mid PTOindependent
Clutchmechanical idler pulley
Dimensions & Tires
Wheelbase44.5 inches
113 cm
Weight680 lbs
308 kg
Front tire4.80-8
Rear tire8.50-12
Full dimensions and tires ...
Simplicity Landlord 2010 attachments
42" mid-mount mower deck
snowblower
blade
Attachment details ...
Electrical
Groundnegative
Battery volts12
References
Landlord 2010 references literature
the new look of Simplicity action '67 published in 1967
