Snapper LT11 LT11000 Transmission


Snapper LT11 LT11000 tractor photo
1983 - 1985
0 Series
Lawn tractor
Series map:
LT11
11.0hp
Transmission
Typeshaft-driven disc
Gears12 forward and 2 reverse
Snapper variable disc drive with 6 notched speed settings and two geared ranges.
Speeds
LT11 LT11000  shaft-driven disc speeds

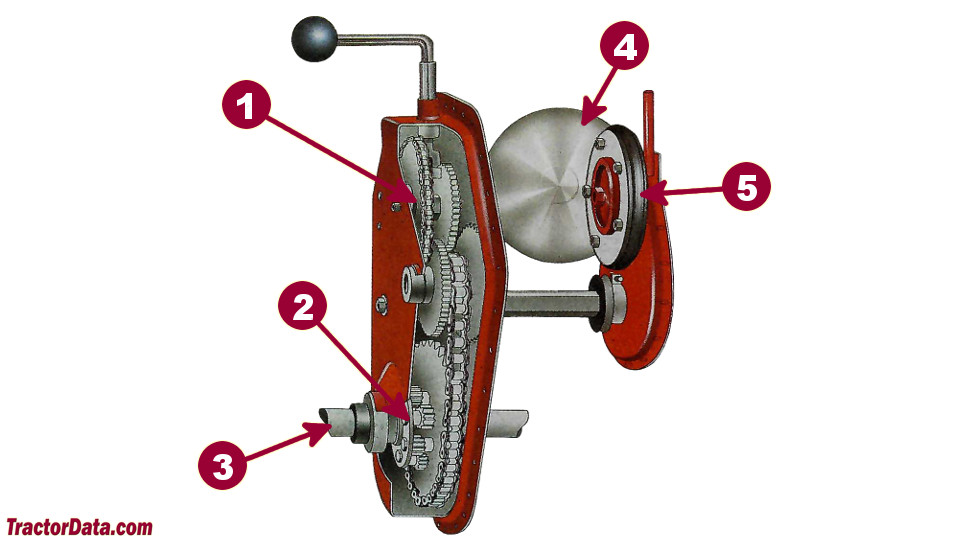

Snapper LT11 Transmission
Snapper LT11 transmission image
1Range shift
2Differential
3Axle shaft
4Drive Disc
5Driven Disc
