Simplicity Conquest 16H Engine

Simplicity Conquest 16H lawn tractor photo
2002 - 2003
Conquest Series
Garden tractor
Series map:
Conquest 16H
Conquest 18H
Engine Detail
Briggs & Stratton Vanguard
air-cooled vertical-shaft V-Twin
Displacement480 cc
29.3 ci
Bore/Stroke2.68x2.60 inches
68 x 66 mm
Power (gross)16 hp
11.9 kW
Air cleanerdual dry element
Starter volts12
Oil capacity1.75 qts
1.7 L

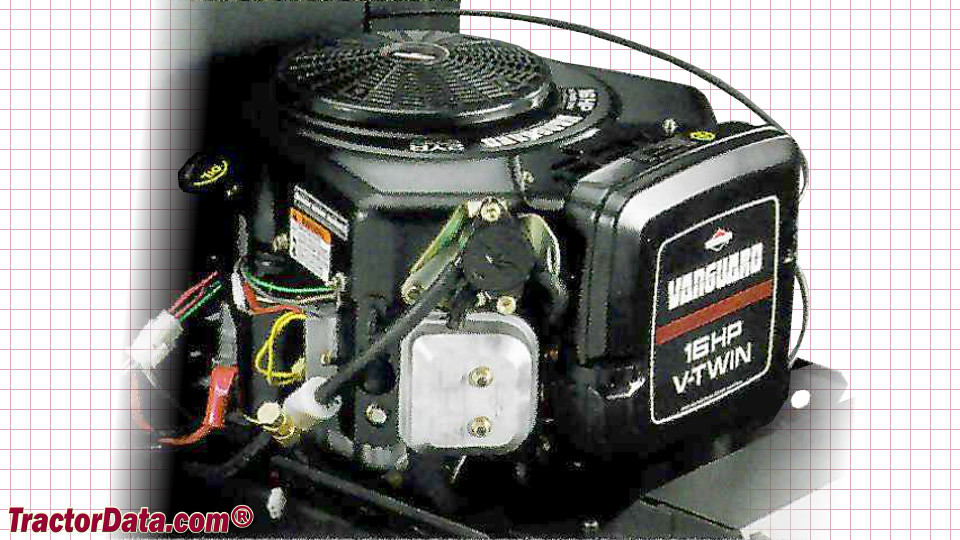

Simplicity Conquest 16H Engine
Simplicity Conquest 16H engine image
