Craftsman 917.27223 Engine

Craftsman 917.27223 lawn tractor photo
Lawn tractor
AYP built
Engine Detail
Kohler CV624
air-cooled vertical-shaft V-Twin
Displacement624 cc
38.1 ci
Bore/Stroke3.03x2.64 inches
77 x 67 mm
Power (gross)20 hp
14.9 kW
Rated RPM3600
Starter volts12
SparkplugChampion RC12YC
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

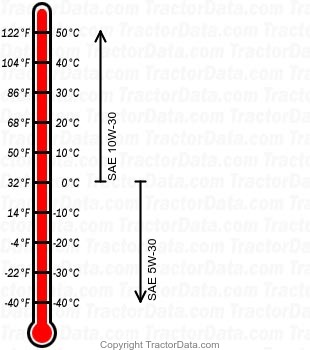

917.27223 gasoline engine oil chart
Oil capacity2.25 qts
2.1 L
Oil change25 h
Page information
Last updateNovember 19, 2020
CopyrightCopyright 2020 TractorData LLC
©2000-2020 - TractorData™. Notice: Every attempt is made to ensure the data listed is accurate. However, differences between sources, incomplete listings, errors, and data entry mistakes do occur. Consult official literature from the manufacturer before attempting any service or repair.
