Cub Cadet Tank SZ 54 KW

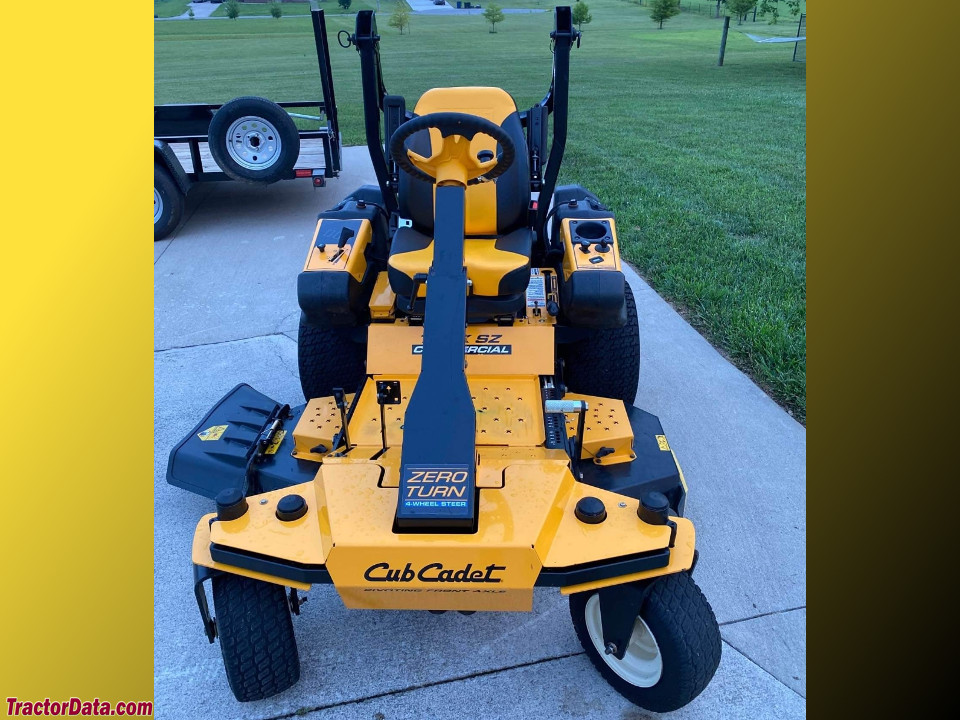

Cub Cadet Tank SZ 54 KW lawn tractor photo
2014 -
Tank S Series
Zero-turn mower
ManufacturerCub Cadet (a part of MTD)
Zero-turn mower
SZ54-KHKohler engine
SZ54-KWKawasaki engine
Cub Cadet Tank SZ 54 Engine
27HP Kawasaki 852cc 2-cyl gasoline
Fuel tank15 gal*Dual 7.5 gallon tanks
56.8 L
Engine details ...
Steeringdifferential power
Drum brakes
Two-post foldable ROPS.
Power Take-off (PTO)
Mid PTOindependent
Dimensions & Tires
Wheelbase54 inches
137 cm
Weight1250 lbs
567 kg
Front tire15x6.5-8
Rear tire24x12-12
Full dimensions and tires ...
Charging amps20
Battery volts12
