Ariens Grand Sierra 2200 Engine

Ariens Grand Sierra 2200 lawn tractor photo
1996 - 2001
Garden tractor
Series map:
Grand Sierra 2200
Engine Detail
Kohler CH22
air-cooled horizontal-shaft V-Twin
Displacement674 cc
41.13 ci
Bore/Stroke3.15x2.64 inches
80 x 67 mm
Power (gross)22 hp
16.4 kW
Fuel use1.8 gal/hour
6.8 l/hour
Air cleanerdry element with foam precleaner
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Engine Oil

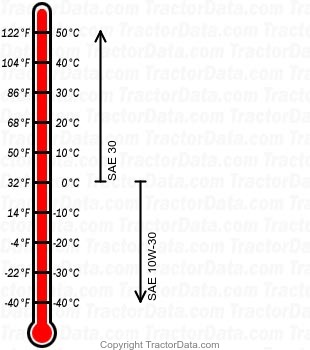

Grand Sierra 2200 gasoline engine oil chart
