Lawn Tractors > Ariens > GT20 931034

Ariens GT20 931034 Engine



Ariens GT20 931034 tractor photo
1988 - 1995
Garden tractor
Series map:
GT19
GT20
19.0hp
20.0hp
Engine Detail
Kohler M20
gasoline
2-cylinder
air-cooled horizontal-shaft V-Twin
Displacement770 cc
46.98 ci
Bore/Stroke3.125x3.06 inches
79 x 78 mm
Power (gross)20 hp
14.9 kW
Fuel use1.8 gal/hour
6.8 l/hour
Air cleanerdry element with foam precleaner
Compression6.6:1
Starterelectric
Starter volts12
SparkplugRV15YS
Sparkplug gap0.020 inches
0.508 mm
Engine Oil

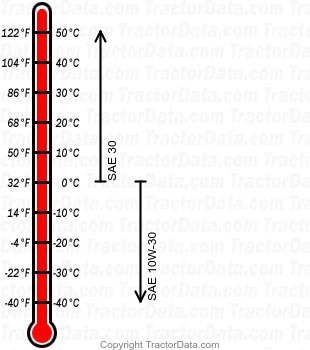

GT20 931034 gasoline engine oil chart
Oil capacity2 qts
1.9 L
