Ariens High Sierra 2248 934027


Ariens High Sierra 2248 934027 lawn tractor photo
2000
Lawn tractor
Series map:
High Sierra 2248
22.0hp
Production
ManufacturerAriens
Lawn tractor
Built in Brillion, Wisconsin, USA
Original price was $4,909 in 2000
Ariens High Sierra 2248 Engine
22HP Briggs & Stratton 2-cyl gasoline
Fuel tank3 gal
11.4 L
Engine details ...
Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.
Power Take-off (PTO)
Mid PTOindependent
Clutchelectric
Dimensions & Tires
Wheelbase48 inches
121 cm
Weight620 lbs
281 kg
Front tire15x6.00-6
Rear tire23x10.50-12
Full dimensions and tires ...
Ariens High Sierra 2248 attachments
48" mid-mount mower deck
snowblower
blade
Attachment details ...
High Sierra 2248 Serial Numbers

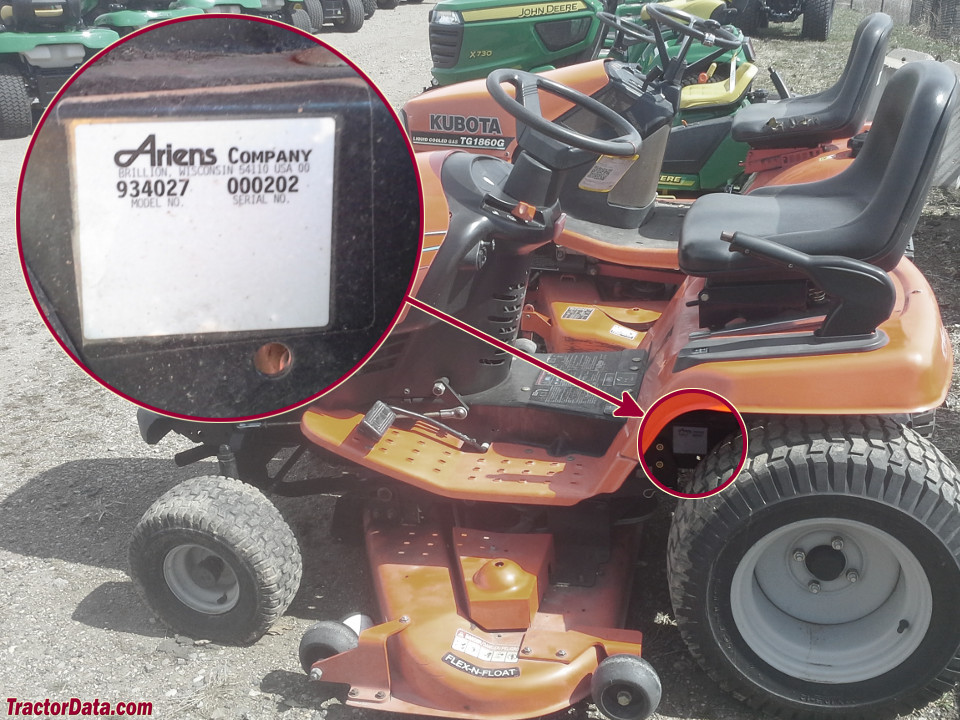

High Sierra 2248 Serial Location
Ariens High Sierra 2248 serial number location
Serial number plate on the left side of the 2248 frame, just ahead of the rear tire.
Electrical
Groundnegative
Charging amps16
Battery CCA220
Battery volts12
References
High Sierra 2248 934027 references literature
Yard Tractors published in 2001, by Ariens
