Ariens HT16 934001

Ariens HT16 934001 lawn tractor photo
1982 - 1995
Model year
Garden tractor
Garden tractor
Built in Brillion, Wisconsin, USA
Ariens HT16 Engine
16HP Briggs & Stratton 655cc 2-cyl gasoline
Fuel tank4.5 gal
17.0 L
Engine details ...
Two-wheel drive
Disc brakes
Open operator station.
No photos of the Ariens HT16 are currently available. To submit yours, email it to Photos may only be used with the permission of the original photographer.
Tractor hitch
Typesleeve hitch OptOptional
Power Take-off (PTO)
Mid PTOindependent
Clutchmechanical pulley
Dimensions & Tires
Wheelbase48 inches
121 cm
Weight547 lbs
248 kg
Front tire15x6.00-6
Rear tire23x8.50-12
Full dimensions and tires ...
Ariens HT16 attachments
42" mid-mount mower deck
48" mid-mount mower deck
Attachment details ...
Battery volts12

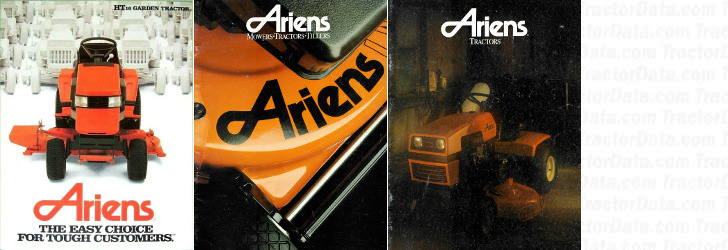

HT16 934001 references literature
HT16 Garden Tractor published in 1983, by Ariens
Mowers - Tractors - Tillers published in 1987, by Ariens
Tractors published in 1988, by Ariens
