Lawn Tractors > Cub Cadet > HDS 2145

Cub Cadet HDS 2145

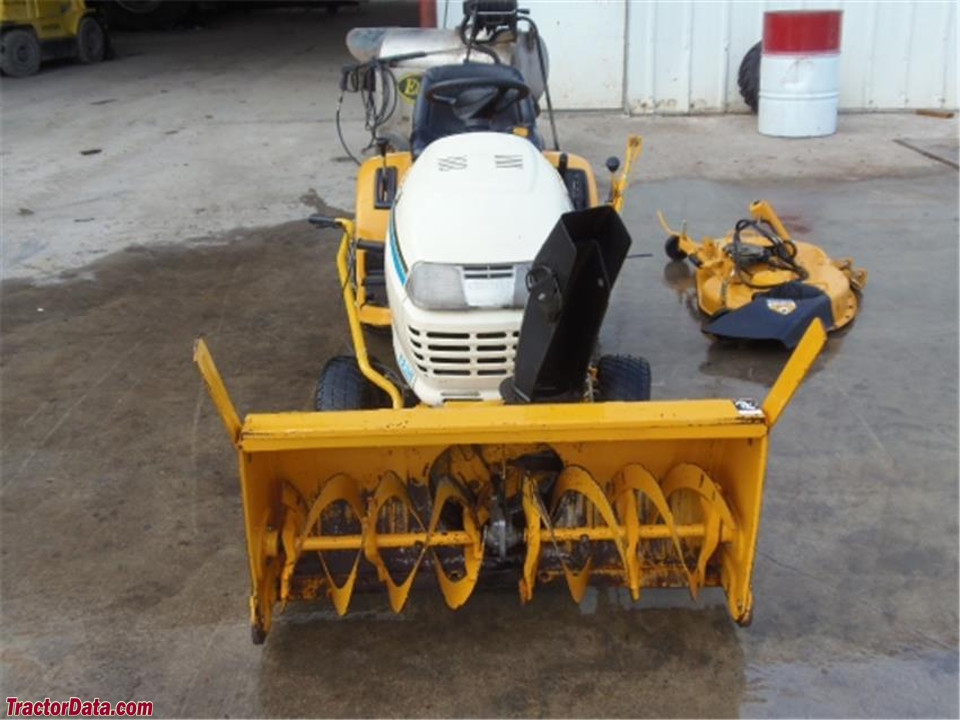

Cub Cadet HDS 2145 tractor photo
1994 - 1995
2000 Series
Lawn tractor
Series map:
2140
2145
2150
14.0hp
14.0hp
15.0hp
Production
ManufacturerCub Cadet (a part of MTD)
Lawn tractor
Variants
2140gear
2165hydrostatic
Cub Cadet 2145 Engine
14HP Onan 388cc 1-cyl gasoline
Fuel tank3 gal
11.4 L
Engine details ...
Cub Cadet 2145 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Photos
Cub Cadet 2145
Cub Cadet 2145 photos...
Power Take-off (PTO)
Front PTOindependent
Clutchelectric
Front PTO Typepulley
Dimensions & Tires
Wheelbase47 inches
119 cm
Front tire15x6-6
Rear tire20x9-8
Full dimensions and tires ...
Cub Cadet 2145 attachments
42" mid-mount mower deck
snowblower
blade
Attachment details ...
2145 Serial Number Location
Cub Cadet 2145 serial number location
Serial number plate on the left side of frame above front axle.
Electrical
Groundnegative
Charging amps15
Battery volts12
References
HDS 2145 references literature
Cub Cadet Garden Tractors (772-4232)
Full Line published in 1995, by Cub Cadet
