Economy Power King 14HP
|
|
| Production | |
| Manufacturer | Economy (a part of Engineering Products Company) |
| Garden tractor | |
| Built in Waukesha, Wisconsin, USA | |
| Economy Power King 14HP Engine | |
| 14HP Kohler 512cc 1-cyl gasoline | |
| Fuel tank | 3 gal 11.4 L |
 Engine details ... | |
| Economy Power King 14HP Transmissions | |
| 3-speed gear | |
| 9-speed gear | |
 Transmission details ... |
| Mechanical | |
| Two-wheel drive | |
| Final drives | spur bull gears |
| Steering | manual |
| Mechanical band brakes | |
| Open operator station. | |
| Hydraulics | |
| Type | open center OptOptional |
| Pressure | 1000 psi 69.0 bar |
| Pump flow | 1.8 gpm 6.8 lpm |
| 7.5 gpm (heavy duty) 28.4 lpm | |
| Tractor hitch | |
| Type | manual-lift rear hitch |
| hydraulic-lift optional | |
| Power Take-off (PTO) | |
| Front PTO | continuous |
| Clutch | none |
| Dimensions & Tires | |
| Wheelbase | 54.375 inches 138 cm |
| Weight | 846 to 937 pounds |
 Full dimensions and tires ... | |
| Economy Power King 14HP attachments | |
| 36" mid-mount mower deck | |
| 48" mid-mount mower deck | |
| 60" mid-mount mower deck | |
| snowblower | |
| blade | |
| front-end loader | |
 Attachment details ... |

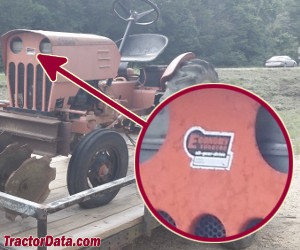

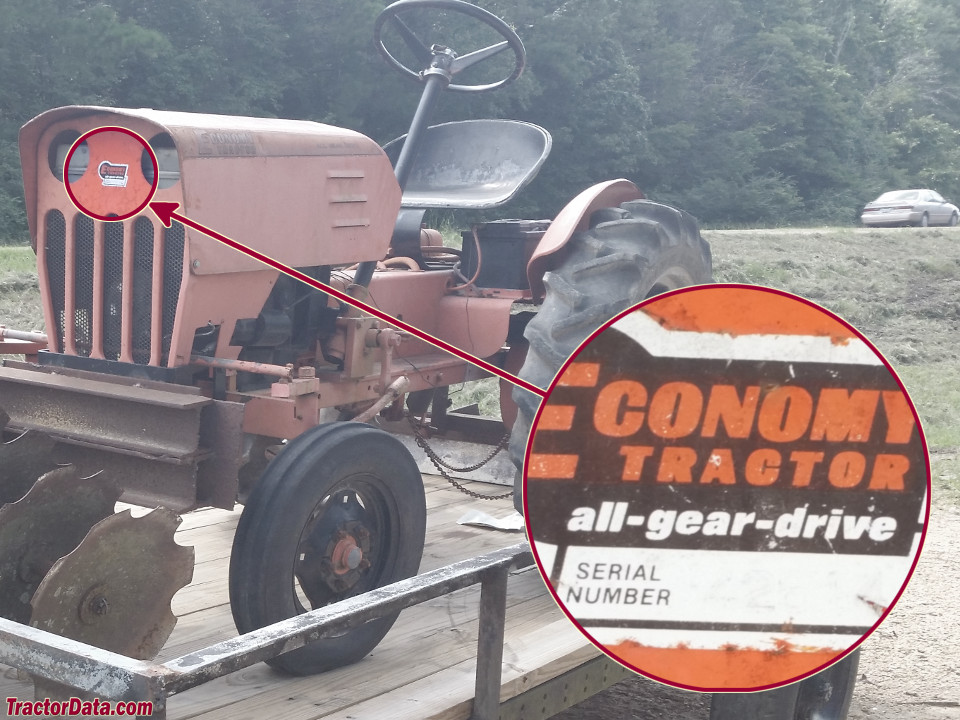

| Power King 14HP Serial Number Location | |
 | |
| Serial number decal on the front of the tractor. |
| Electrical | |
| Ground | negative |
| Charging system | flywheel alternator |
| Charging amps | 15 |
| Battery volts | 12 |
| Battery AH | 45 |
